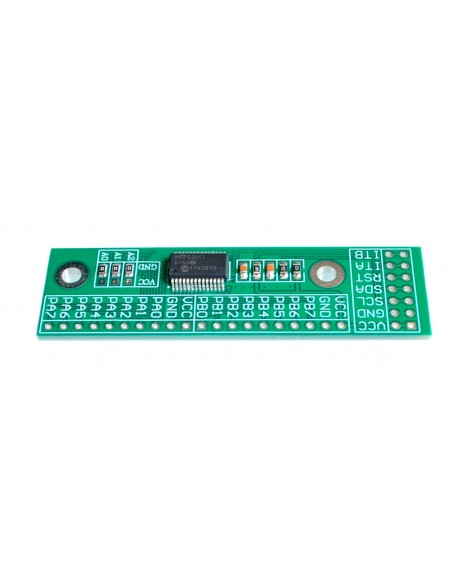

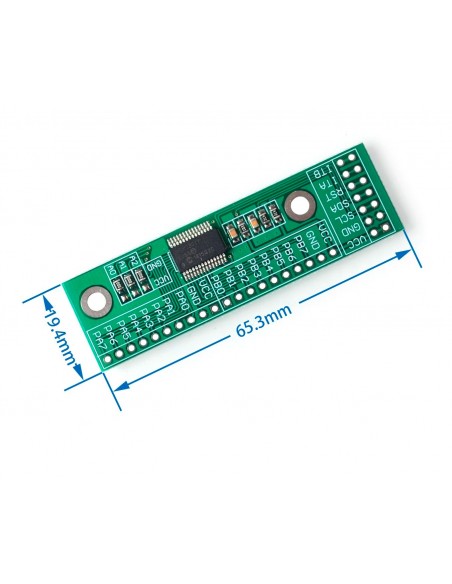

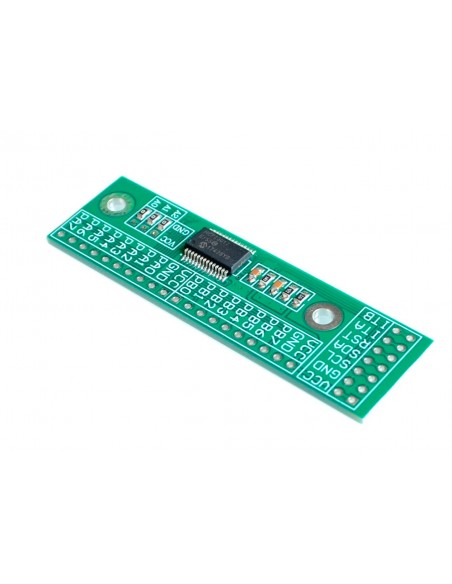

MCP23017 16-Bit I/O Expander 10Mhz Long

Description:

This module is the 16 way IO extension module of the 12C interface, and built in the MCP23017 chip of MicroChip. The function of the chip is complete. Each IO can be arbitrarily configured as input or output, and a pull up resistor can be set, and the interrupt function can be enabled for the IO configured as input. The IO interface has a strong driving capacity, and the current and current can reach 25mA.
      MCP23017 is a high-speed IIC interface. It supports the IIC frequency of 100KHz, 400KHz and 1.7MHz. The chip has 3 address pins, which can be set up for 8 different addresses. So 8 modules can be connected through two IIC buses to achieve up to 128 IO extensions.
      This module is flexible in configuration and strong in driving ability. There are many parallel connections.

Parameters:

Pin description:

Description:

16-Bit Remote Bidirectional I/O Port:
- I/O pins default to input
• High-Speed I2C Interface (MCP23017):
- 100kHz
- 400kHz
- 1.7MHz
• High-Speed SPI Interface (MCP23S17):
- 10 MHz (maximum)
• Three Hardware Address Pins to Allow Up to
Eight Devices On the Bus
• Configurable Interrupt Output Pins:
- Configurable as active-high, active-low or
open-drain
• INTA and INTB Can Be Configured to Operate
Independently or Together
• Configurable Interrupt Source:
- Interrupt-on-change from configured register
defaults or pin changes
• Polarity Inversion Register to Configure the
Polarity of the Input Port Data
• External Reset Input
• Low Standby Current: 1 μA (max.)
• Operating Voltage:
- 1.8V to 5.5V @ -40°C to +85°C
- 2.7V to 5.5V @ -40°C to +85°C
- 4.5V to 5.5V @ -40°C to +125°C
