UNO R3

The Arduino Uno is a microcontroller board based on the ATmega328,Clock Speed 16 MHz, Flash Memory 32 KB

00001
Out-of-Stock
€9.50

(€9.00 gb./шт.)

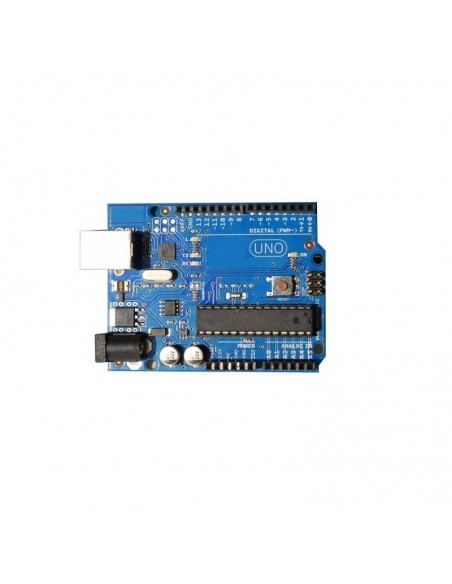

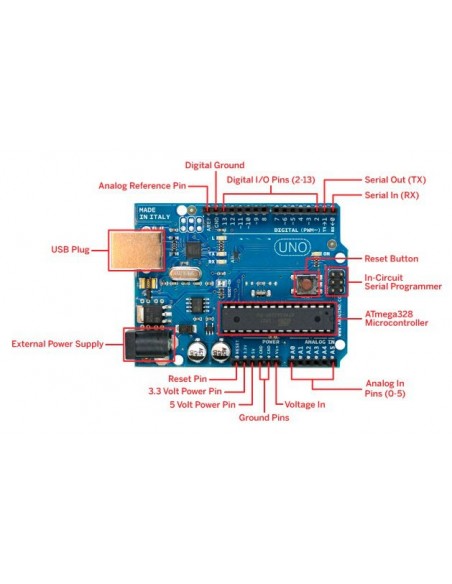

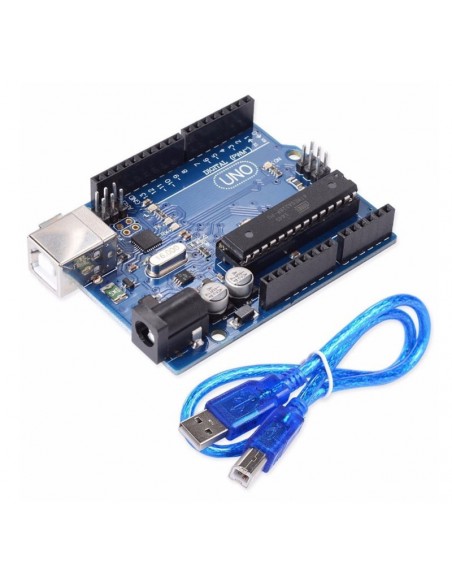

The Arduino Uno is a microcontroller board based on the ATmega328 (datasheet). It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

The Uno differs from all preceding boards in that it does not use the FTDI USB-to-serial driver chip. Instead, it features the Atmega16U2 (Atmega8U2 up to version R2) programmed as a USB-to-serial converter.

Microcontroller:
ATmega328
Operating Voltage:
5V
DC Current per I/O Pin:
40 mA
DC Current for 3.3V Pin:
50 мА
Digital I/O Pins:
14
PWM:
6
Analog Input Pins:
6
Flash Memory:
32 KB
SRAM:
2 KB
Bootloader:
0.5 KB
EEPROM:
1 KB
Clock Speed:
16 MHz
USB cable:
Сomplete set
Size:
75 x 54 x 15 mm
Weight:
27 g
