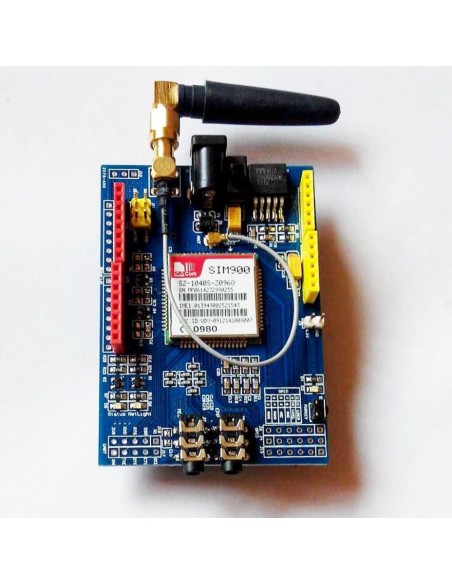

SIM900 Quad Band Wireless GSM/GPRS Shield
GSM/GPRS Shield For Arduino
Description:
The item is a GSM/GPRS shield,based on the SIM900 Quad-band GSM/GPRS module. It is controlled via AT commands (GSM 07.07 ,07.05 and SIMCOM enhanced AT Commands), and fully compatible with Arduino Uno and Mega .
Features:
- 1. Quad-Band 850/ 900/ 1800/ 1900 MHz
- 2. GPRS multi-slot class 10/8
- 3. GPRS mobile station class B
- 4. Compliant to GSM phase 2/2+
- Class 4 (2 W (AT) 850/ 900 MHz)
- Class 1 (1 W( AT) 1800/1900MHz)
- 5. Control via AT commands (GSM 07.07 ,07.05 and SIMCOM enhanced AT Commands)
- 6. Short message service
- 7. Free serial port selection
- 8. All SIM900 pins breakout
- 9. RTC supported with SuperCap
- 10. Operation temperature: -40 ~ +85
Specifications:
- PCB size:71.4mm X 66.0mm X 1.6mm
- Indicators:PWR, status LED, net status LED
- Power supply:9~20V, compatible with Arduino
- Communication Protocol:UART
- RoSH:Ye
Application Ideas
- M2M (Machine 2 Machine) Applicatoions.
- Remote control of appliances.
- Remote Weather station or a Wireless Sensor Network.
- Vehicle Tracking System with a GPS module.
