Digital oscillograph DSO138 (with SMD)

An electronic designer is a digitaloscillograph

(with SMD)

00266
Out-of-Stock
€29.00




(with SMD)

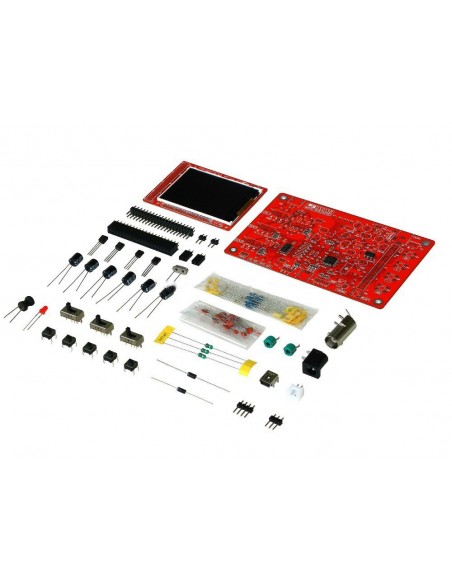

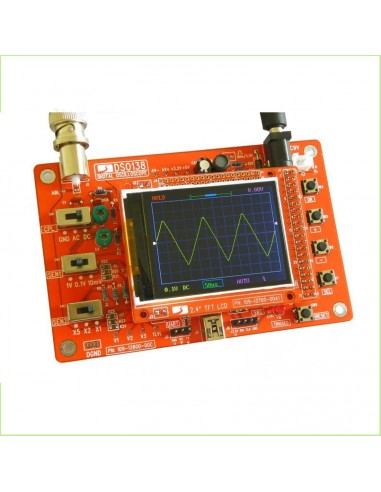

DSO138 was designed as a training oscilloscope kit. It contains only the basical oscilloscope functions with no fancy features. Simplicity in structure and easiness in assembly/operation are among the main targets of the design. For these purpose DSO138 uses mostly through-hole parts. The heart of DSO138 is a Cortex-M3 ARM processor (STM32F103C8) from ST. It uses 2.4-inch TFT LCD (320 X 240 dotmatrix, 262K colors) as its display element and displays nice and clear waveforms. Detailed assembly instructions are provided in combination with troubleshooting guide and schematc. Source codes are also available to allow user to add their own features.

Major features of DSO138:

  • Analog bandwidth: 0 - 200KHz
  • Sampling rate: 1Msps max
  • Sensitivity: 10mV/Div - 5V/Div
  • Sensitivity error: < 5%
  • Vertical resolution: 12-bit
  • Timebase: 10us/Div - 500s/Div
  • Record length: 1024 points
  • Built-in 1KHz/3.3V test signal
  • Waveform frozen (HOLD) function available
  • Save/recall waveform
