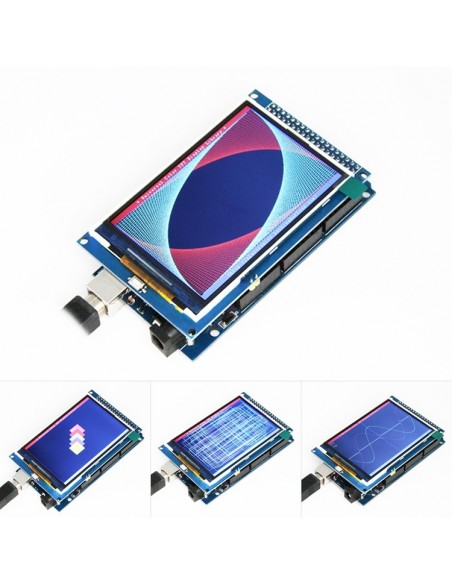

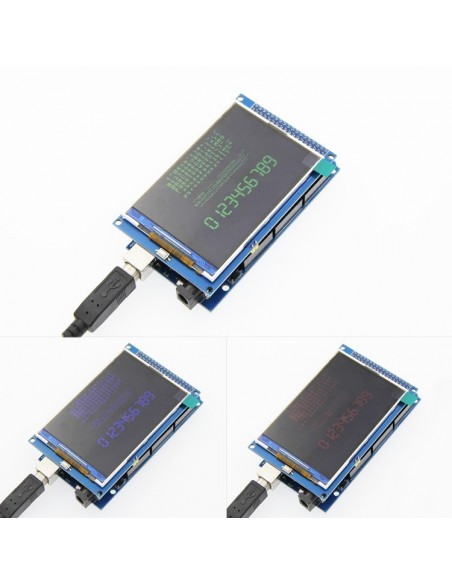

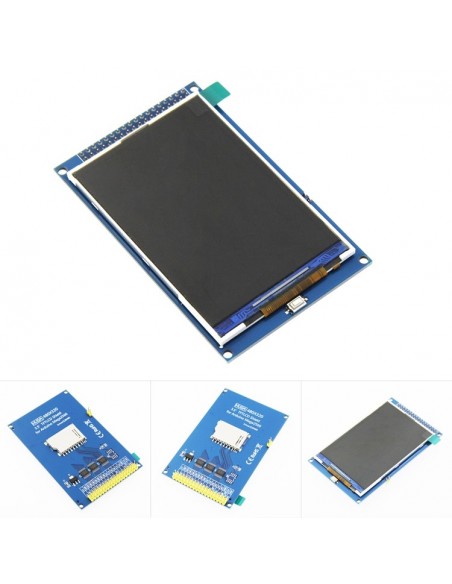

TFT LCD module for MEGA2560 (320X480)

00517
Out-of-Stock
€17.50




LCD Screen details:

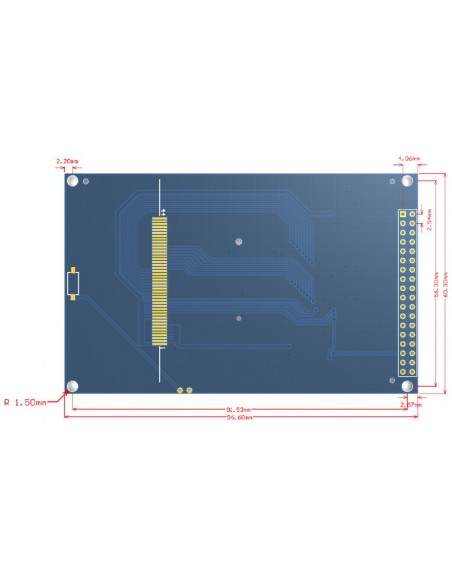

  • Size : 96.6(W)*60.3(L)(mm)
  • Screen Size : 3.5 inch
  • Backlight Type : Highlighting White 6 LED
  • Screen Resolution : 480*320(Pixel)
  • Power Consumption : 80~110(mA)
  • Screen Type : TFT(IPS Whole Perspective)
  • Power : 5V/3.3V
  • Touch Function : none
  • Driver IC : ILI9386
  • Data Bus : 16 Channels Parallel Bus

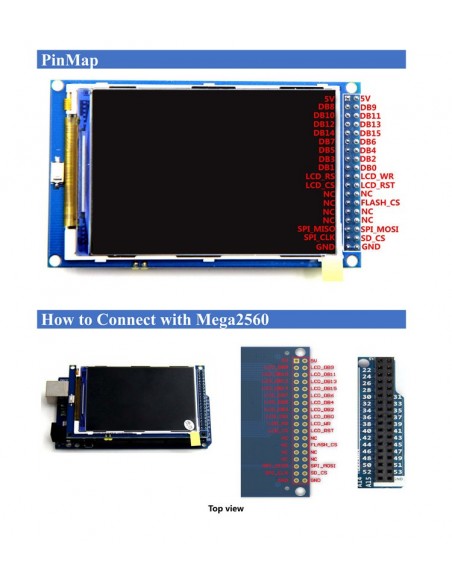

  • Module Interface : 36Pin (Compatible with Arduino Mega2560)
