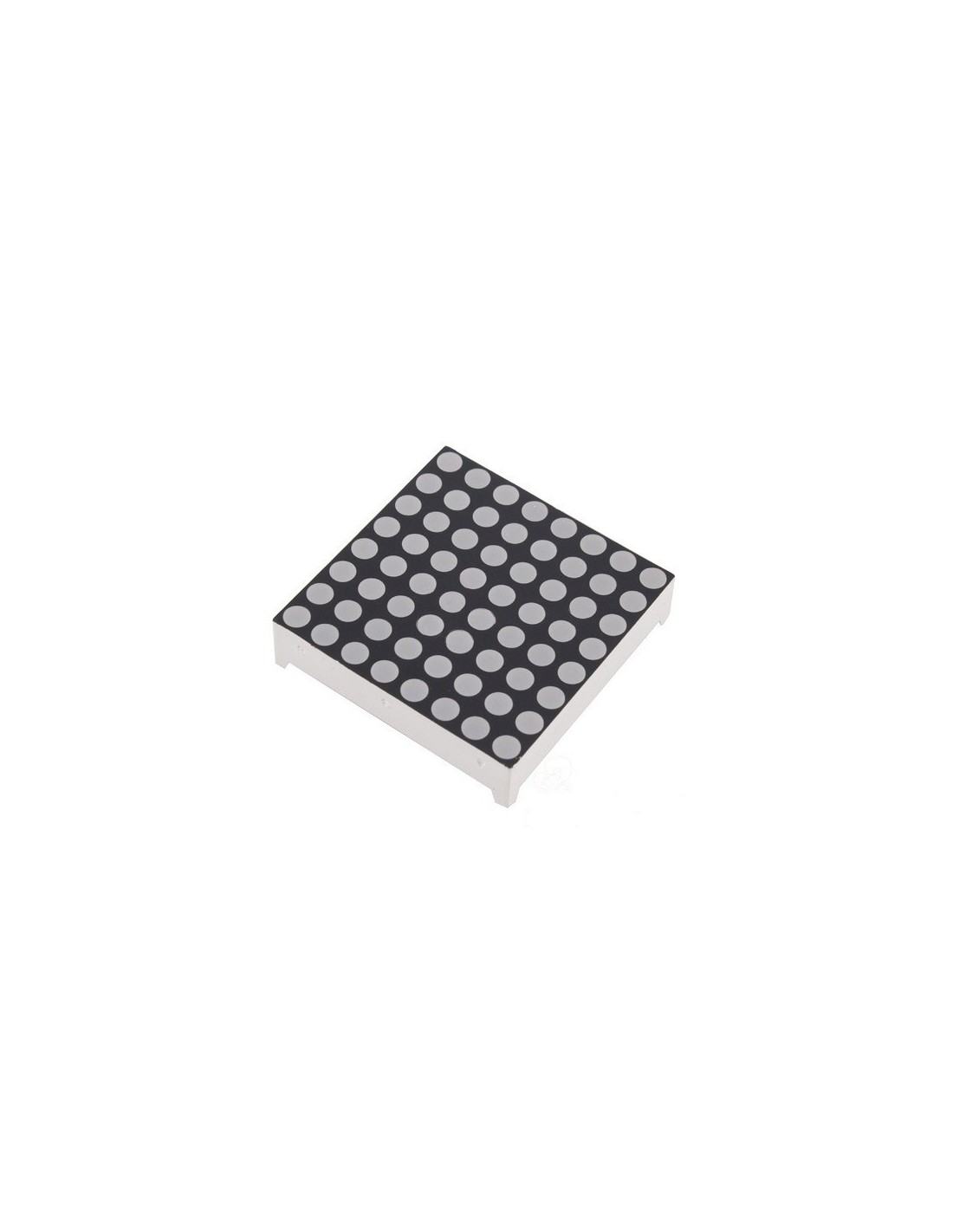

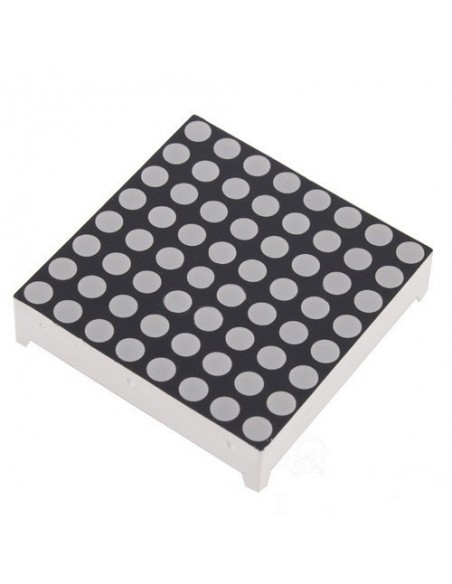

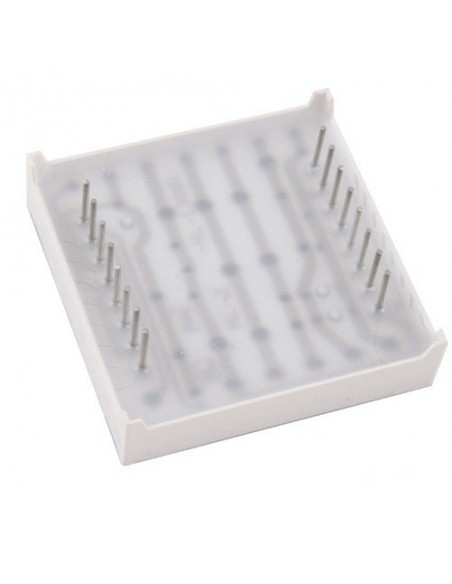

Screen - LED Dot matrix 8x8

Features:

• Brand new and high quality.
• Emitted Colour: Red.
• Type: common anode.
• Led Size: 3mm.
• Peak Wave Length (nm) : 625 ~ 630.
• Forward Voltage (V) : 2.1 ~ 2.5.
• Reverse Current (uA) : <= 20.
• Max Power Dissipation(PM): 40mW.
• Max Peak Forward Current(IFP): 100mA.
• Max Continuous Forward Current(IFM): 20mA.
• Lead Soldering Temperature : 260 Degree (<5Sec).
• Operating Temperature Range : -30 ~ +70 Degree.
• Preservative Temperature Range : -40 ~ +85 Degree.
• Size: 32mm X 32mm X 8.0mm.
