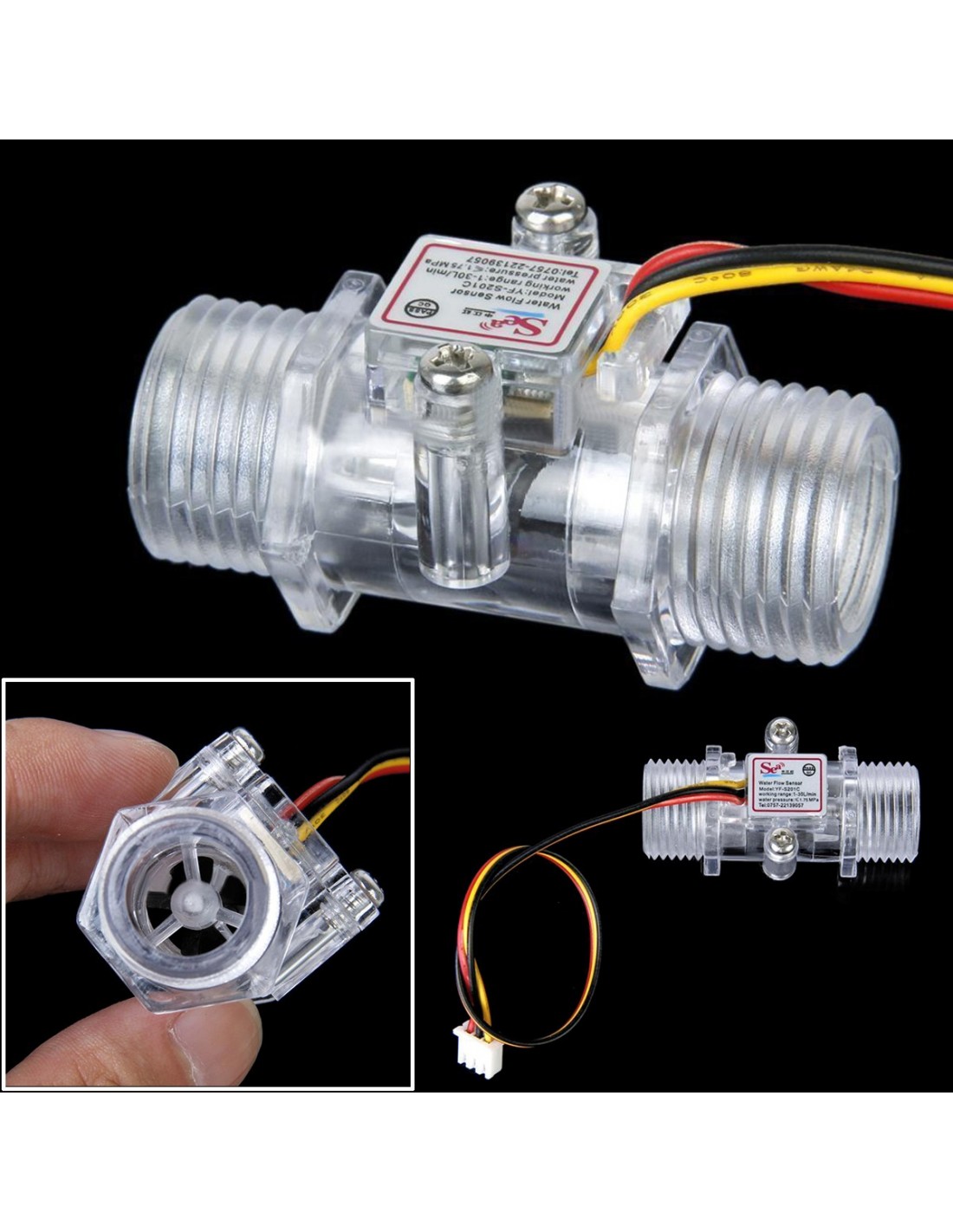

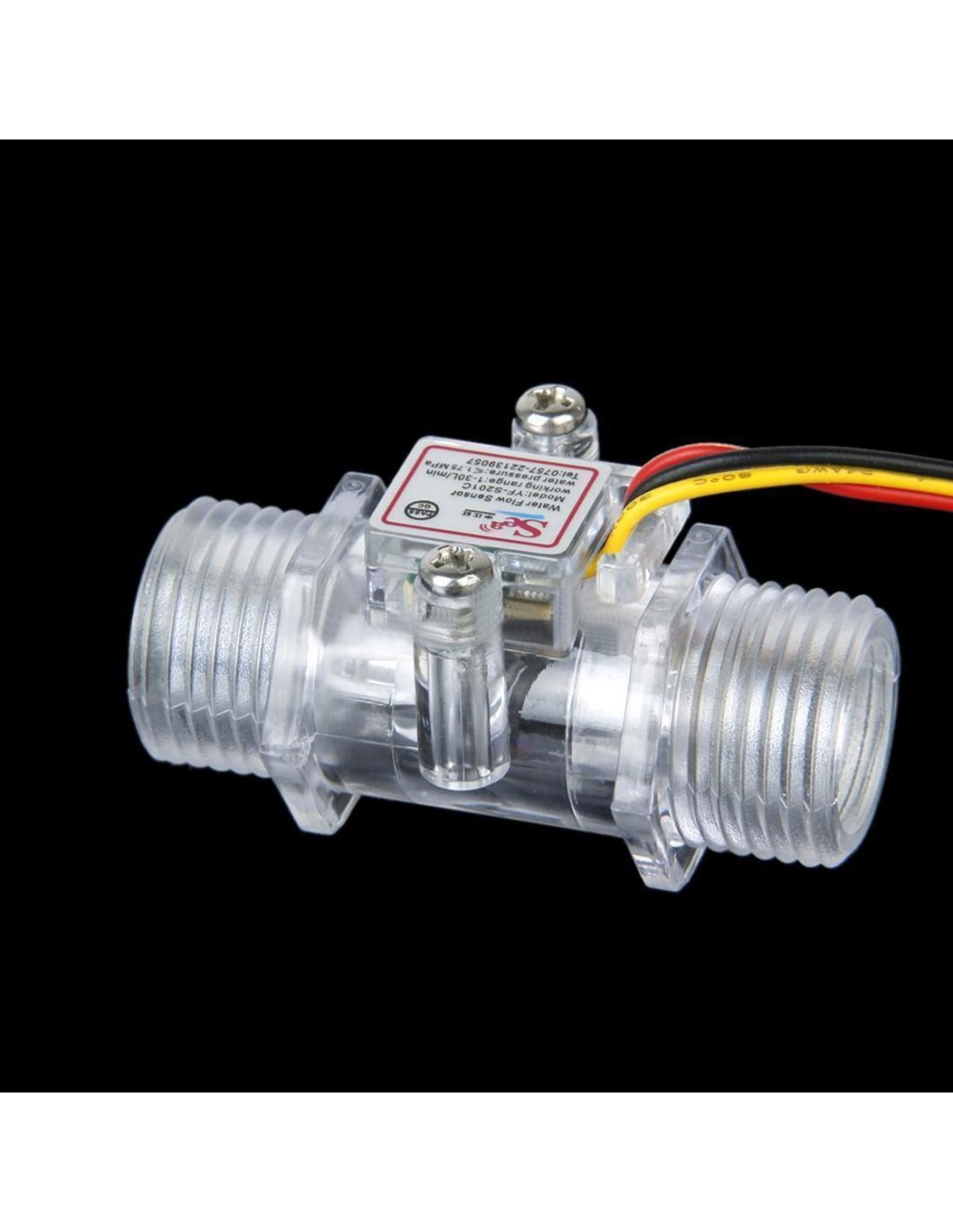

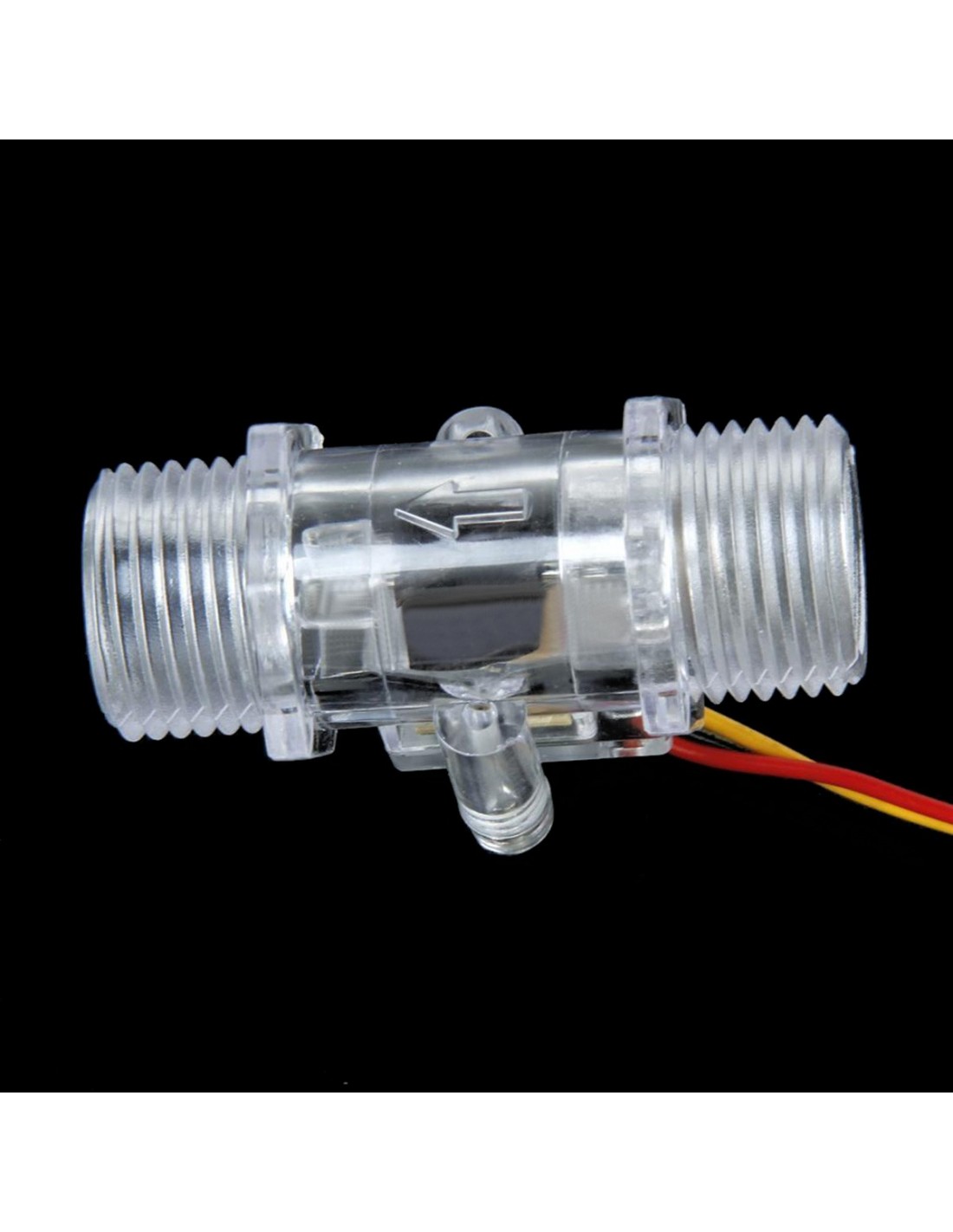

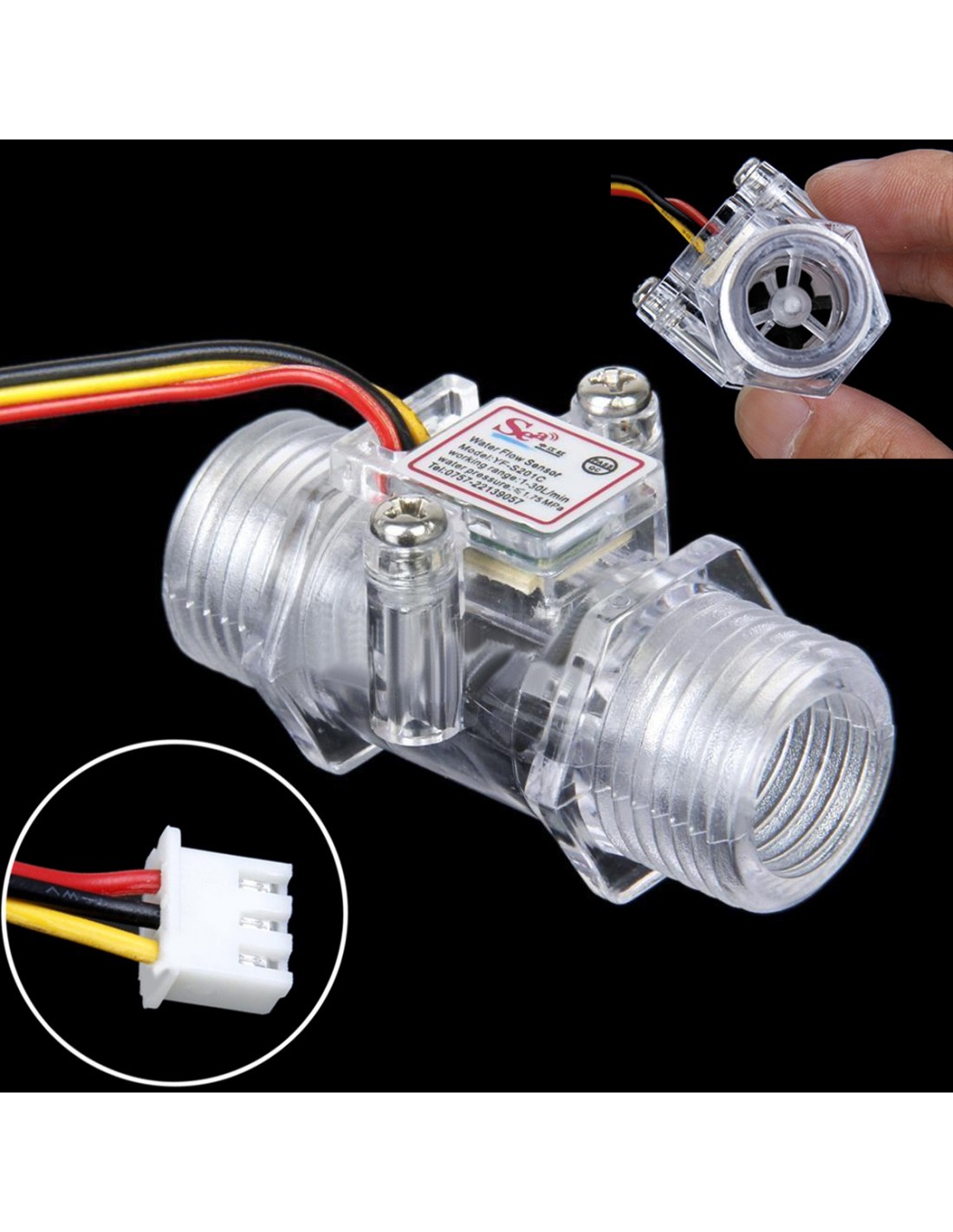

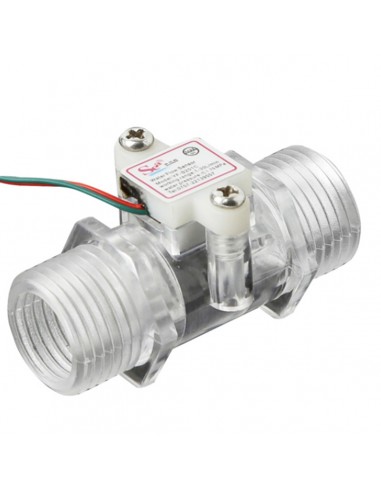

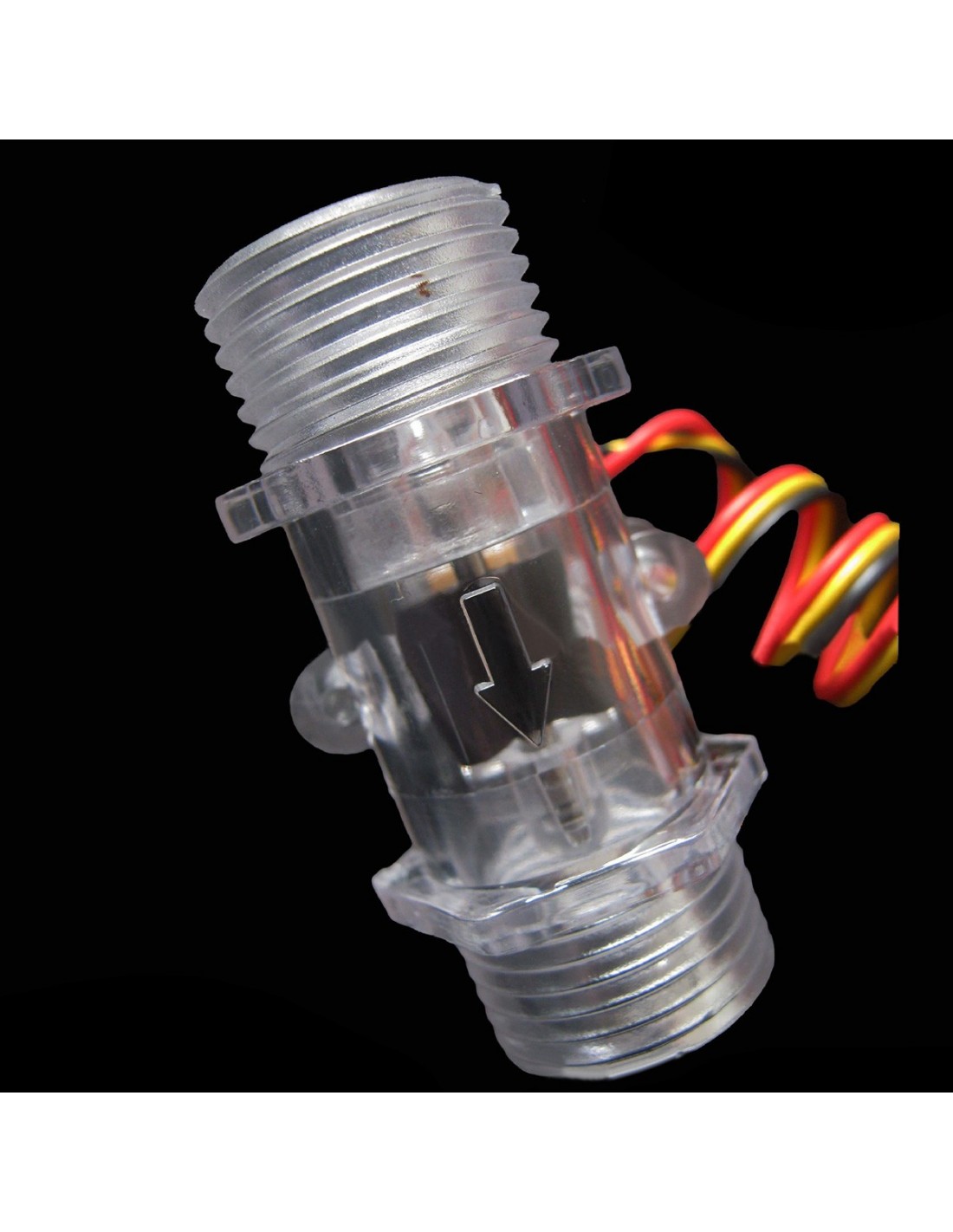

Water Flow Sensor G1/2"

00621
Out-of-Stock
€8.20




Feature:

  • Consists of plastic valve body, rotor assembly and hall current sensor.
  • Installed in the hot water inlet end for detecting water flow.
  • When water through the flow rotor assembly, magnetic rotor will rotate and speed will change as the flow change.
  • Hall current sensor output corresponding pulse signal and feedback to controller, then the controller will control the flow.
  • Light in weight, small in size.
  • Simple structure, easy to operate.
  • Easy to install.
  • Accurate and reliable.
  • Inlaid with stainless steel impeller shaft, durable and wearable.
  • Seal Ring with the upper and lower force structure never leaks.
  • Can use for Water heaters, credit card machines, water vending machine, flow measurement device.
  •

Cord Connection:

  • Red: Positive(+)
  • Yellow: Signal output
  • Black: Negative(-)

Note:

  • Non-violent shock, and chemical erosion.
  • Non-throwing or hitting.
  • Mounted vertically, should not exceed 5 degrees inclination.
  • Temperature of Medium should not exceed 120 ℃.
  • Please allow 1-5mm errors due to manual measurement.
