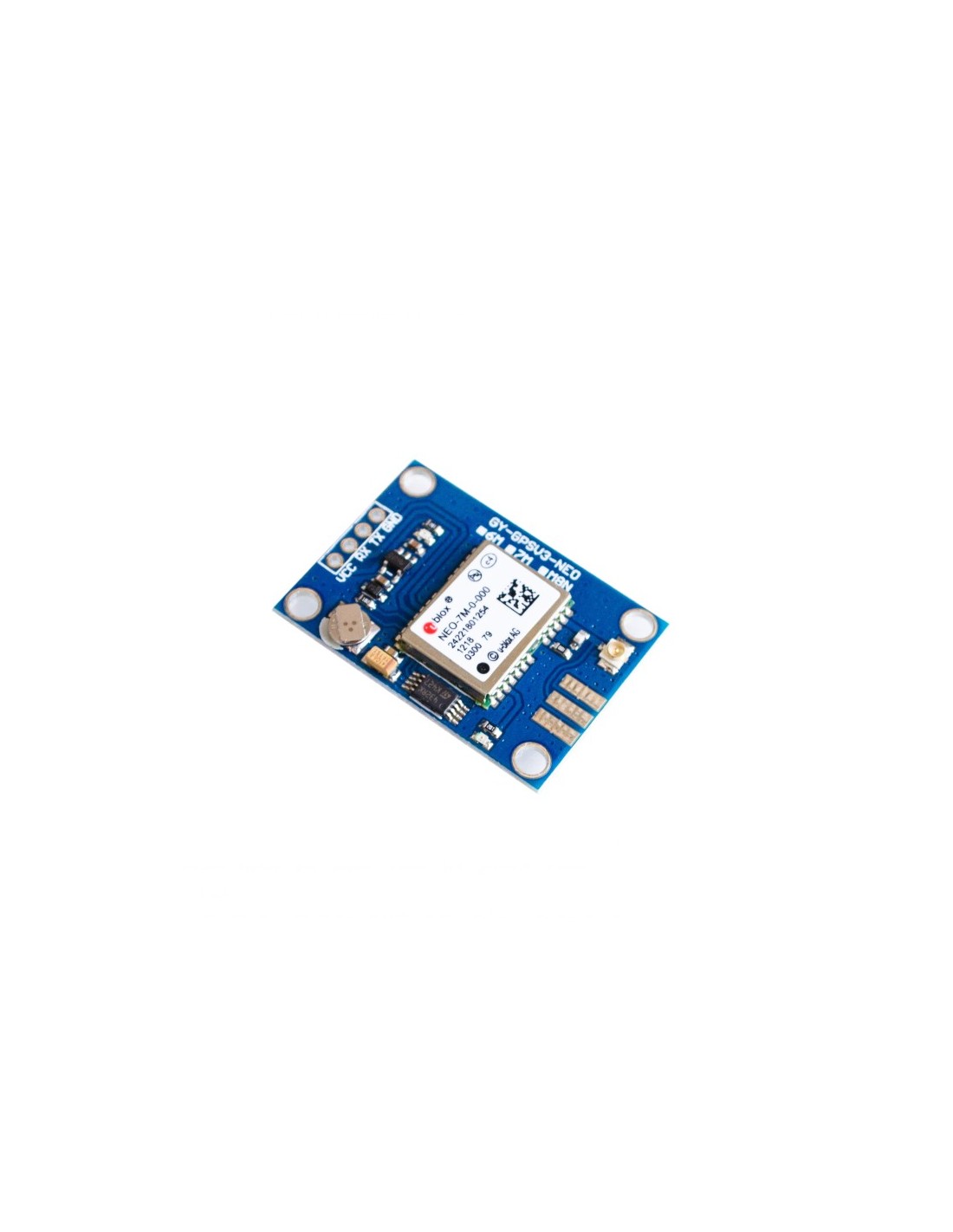

GPS / GLONASS module with active antenna

00624
Out-of-Stock
€18.90



Product Features :

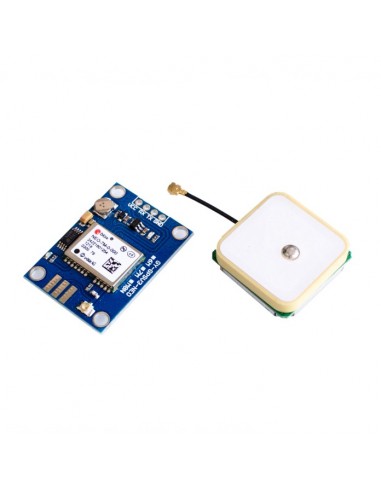

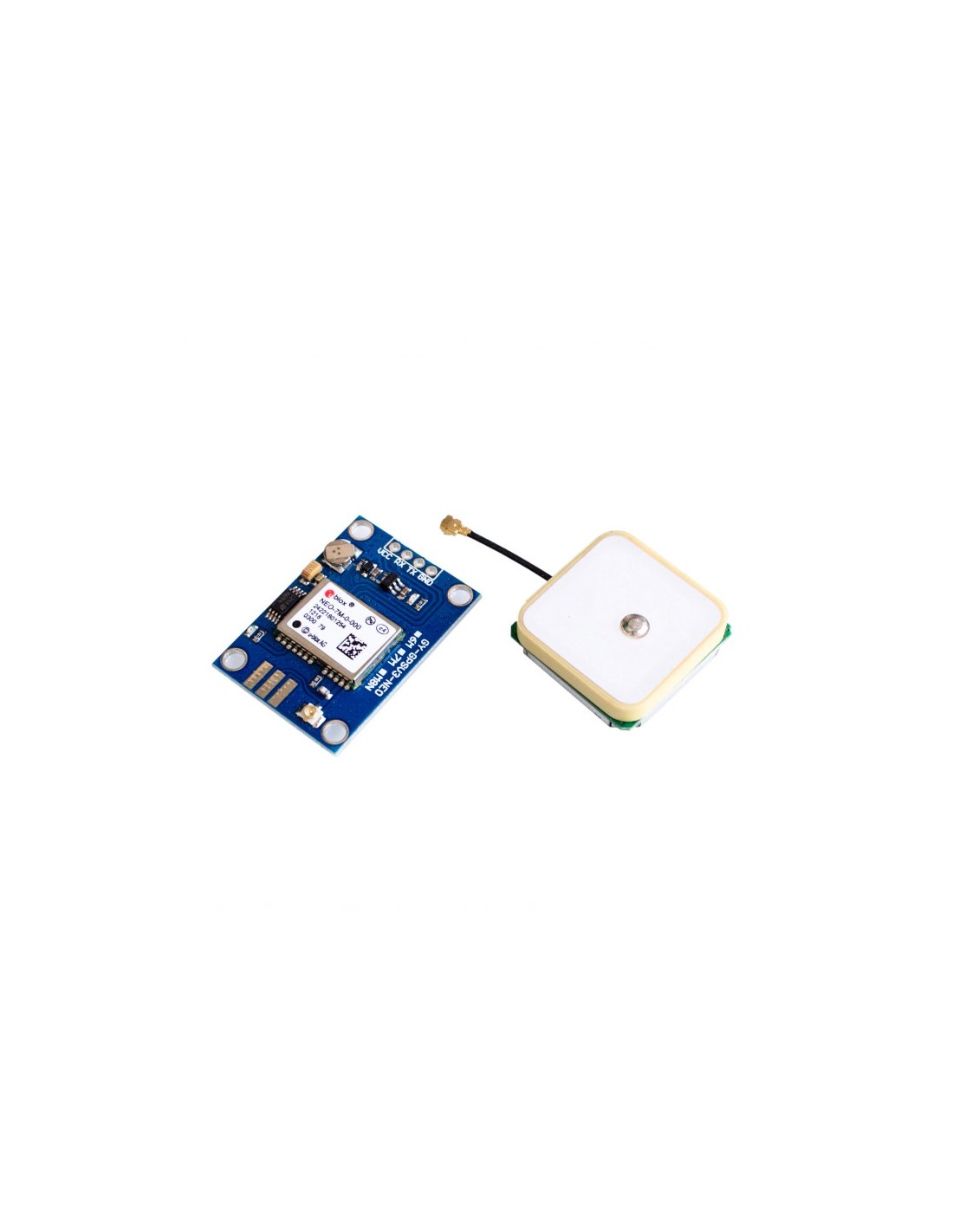

  • Using the NEO-7M module , comes with high gain active antenna
  • Supports GLONASS ( Russian navigation system )
  • BaudRate: 9600
  • Come with IPX interface, you can connect many other active antenna
  • Built- in rechargeable backup battery , can be powered down to save ephemeris data to achieve hot start
Parameters :
  • Interface features :TTL level compatible with 3.3V/ 5V systems
  • Reception characteristics : 56 channels , GPS L1 (1575.42Mhz) C/A code , SBAS:WAAS / EGNOS / MSAS
  • Positioning accuracy : 2.5mCEP (SBAS: 2.0mCEP)
  • Update rate :Maximum 10Hz ( default 1HZ)
  • Acquisition Time : Cold start : 27S ( fastest )
  • Hot start : 1S
  • Tracking Sensitivity : -162dBm
  • Acquisition sensitivity ( cold start ): -148dBm
  • Oscillator : TCXO (+/- 0.5PPM)
  • Communication Protocol : NMEA ( default ) / UBX Binary
  • Serial communication baud rate : 9600
  • Speed limit : 500m / s
  • Height restriction : 50000m
  • Working temperature : -40 C to 85 C
  • Operating voltage : 2.7V-5.0V (VCC pin input )
  • Working Current : 35mA
  • TXD / RXD Impedance: 510 ohm
Applications:
  • Navigation , positioning quadrocopter
Instructions (take MCU for example)
  • VCC: pick 3.3V / 5V
  • GND: to GND
  • TXD: pick MCU.RX
  • RXD: pick MCU.TX
  • PPS: pick MCU.IO clock pulse output ( do not connect )
