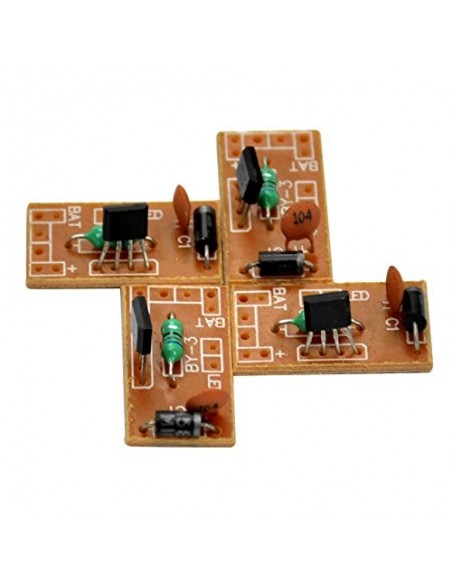

QX5252 Solar LED drive board
QX5252 Solar LED drive board
QX5252 Solar LED drive board
QX5252 Solar LED drive board

QX5252 Solar LED drive board

Solar LED drive board

00795
6 Items
€1.80



It is used with solar power elements together with Ni-Cd batteries.

  • Operating voltage range: 0.9 ~ 1.5.
  • Chip-qx5252
  • Size: 22 mm x 12mm x 5 mm

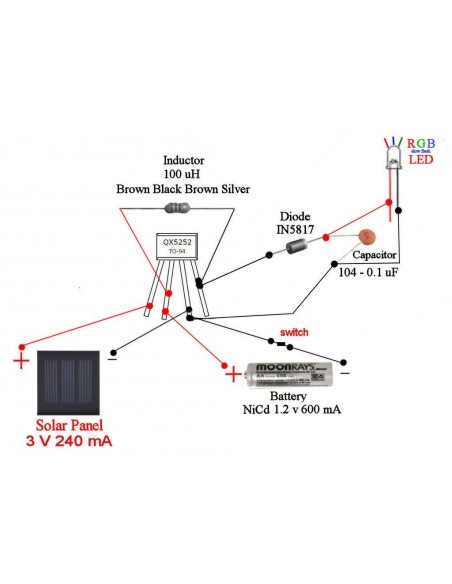

In the presence of light-charges the battery from the solar cell, in the absence of light-includes generation and feeds the LEDs current, depending on the value of inductance (~ 150uh = 25mA). When the voltage falls on the battery below 0.9 v-disables generation and waits for light.

6 Items
No reviews
