It’s an open-source single-board computer. It can run Android 4.4, Ubuntu, Debian, Raspbian image. It uses the RDA8810 Soc, and has 256MB LPDDR2 SDRAM.

00742
1 Item
€17.90



Hardware specification

CPU

ARM Cortex-A5 32bit

GPU

Separate graphic processor, Vivante's GC860

support OpenGLES1.1/2.0

support OpenVG1.4

support DirectFB

support GDI/DirecShow

30M Triangle/s, 250M Pixel/s

Memory (SDRAM)

Integrated 256MB LPDDR2 SDRAM

Onboard Storage

TF card / Integrated 512MB 8Bit 1.8V 4K SLC Nand Flash

Onboard WIFI+BT

RDA5991, WIFI+BT

2G model

The four frequency single card

GSM/GPRS Dedicated accelerators

SIM card

Video Input

A CSI input connector Camera

Supports 8-bit YUV422 CMOS sensor interface

Supports CCIR656 protocol for NTSC and PAL

Supports SM pixel camera sensor

Supports video capture solution up to 1080p@30fps

Audio Input

MIC, 3.5 mm Jack

Video Outputs

LCD

Audio Outputs

3.5 mm Jack, FM, SPEAK（Optional）

Power Source

USB OTG can supply power
Battery input can supply power（Optional）

GPIO(1x3) pin

UART, ground.

USB 2.0 Ports

One USB 2.0 HOST, One USB 2.0 OTG

Buttons

Power Button(SW602)

Low-level peripherals

40 Pins Header,compatible with Raspberry Pi B+

LED

Power led

Supported OS

Android, Ubuntu, Debian, Raspbian Image

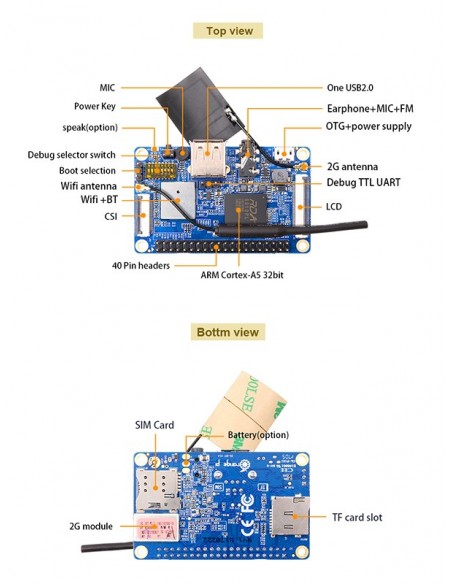

Interface definition

Product size

67 mm × 42mm

Weight

35g
