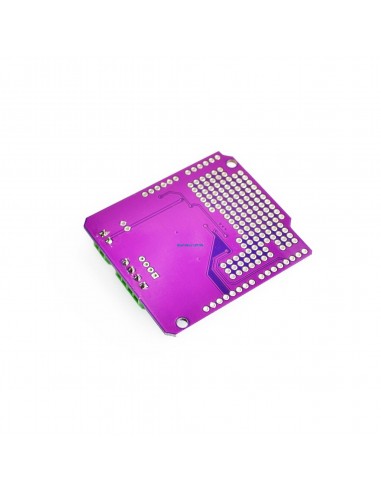

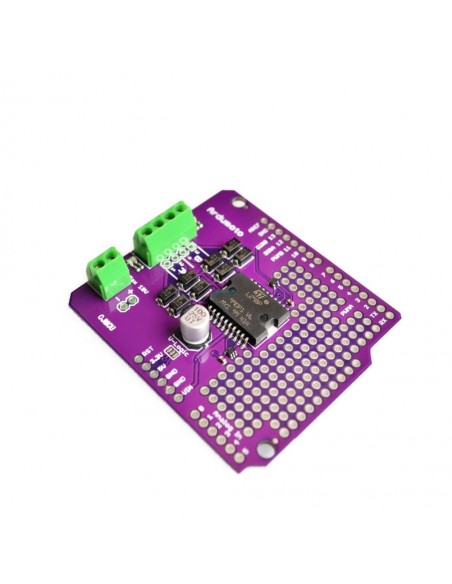

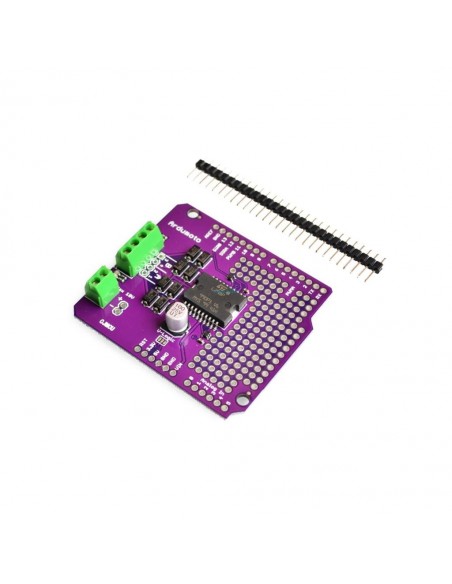

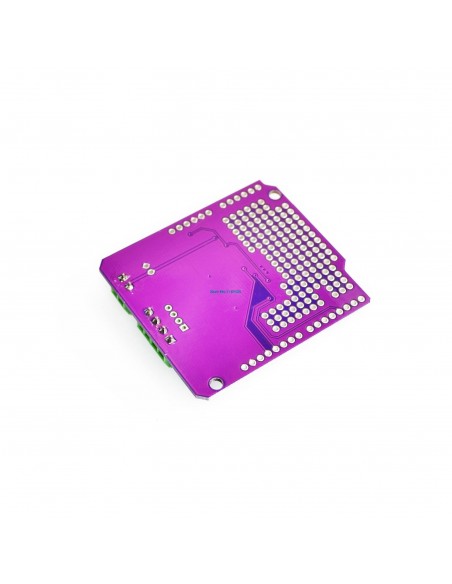

The Ardumoto Shield is a dual-motor controller for Arduino

00582
1 Item
€8.90



The Ardumoto  is a motor shield for Arduino that will control two DC motors. Based on the L298 Dual Full Bridge Driver

The Ardumoto can drive up to 2 amps per channel. The board takes its power from the same Vin line as the Arduino board, includes blue and yellow LEDs to indicate active direction, and all driver lines are diode protected from back EMF. The new version of this shield allows for either 3.3 or 5v logic, a separate and more robust VIN connection, and the PWM input has moved to pin 3.

Control for motor attached to OUT1/2 is connected to digital line 12 (direction A) and digital line 3 (PWM A). Control for motor attached to OUT3/4 is connected to digital line 13 (direction B) and digital line 11 (PWM B).

Specs

  • The Logic Control Voltage: 4.5~5.5V
  • Motor Supply Voltage: 6~15V
  • Max Drive Current: 2A
  • Maximum Power Dissipation: 25W (T = 75 degree Celsius)
  • Operating Temperature: -25 degree Celsius ~ +130 degree Celsius
  • Output Duty Range: 0%~100%
