Motor Drive Shield

00733
Out-of-Stock
€8.50




Description

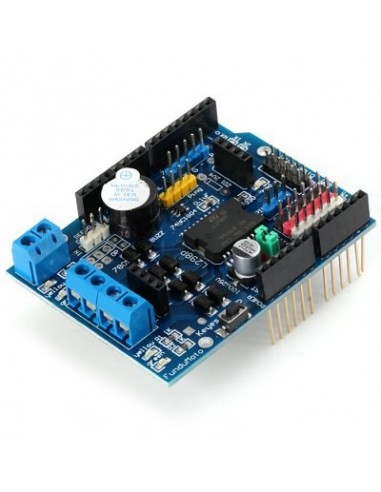

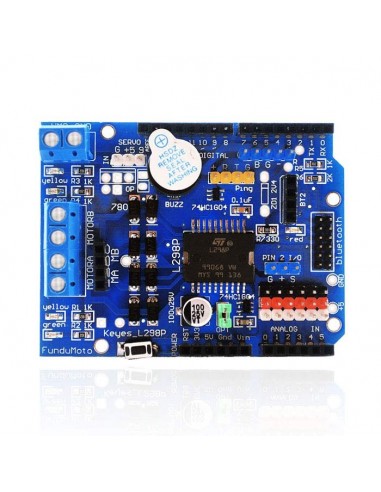

L298P Shield DC motor drives using LGS’s outstanding high-power motor driver chip dedicated L298P, can directly drive two DC motors, drive current up to 2A, motor output using eight-speed Schottky diodes as protection. Stack design can be directly plugged into the Arduino, easier to use!


Technical Specifications:

  • Logical part of the input voltage VD: 5V- driven part of the input voltage VS: VIN Input 6.5 ~ 12V, PWRIN 4.8 ~ 35V input
  • Logical part of the work current Iss: <36mA – driven part of the operating current Io: <2A
  • Maximum power dissipation: 25W (T = 75 Celsius)
  • Control signal input level: High 2.3V Working temperature: -25 + 130 Celsius
  • Hardware interface: 5.0mm pitch terminal
  • Belt clip and can be controlled via front row access signal
  • Drive Type: Dual power H-bridge driver

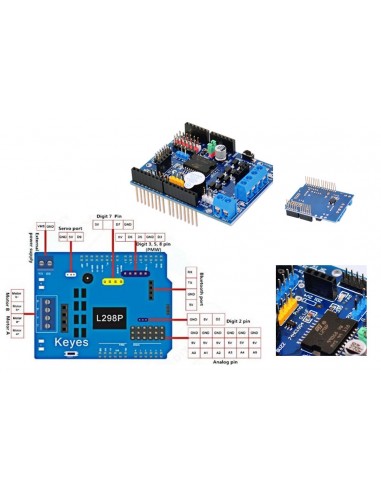

  • Pin occupancy: D4 ~ D7 direct drive motor
  • Supports PWM / PLL mode motor speed control
  • Size: 68mm * 53mm
