Motor Shield For WeMos D1 mini I2C Dual Motor Driver TB6612FNG (1A) V1.0.0

• I2C interface
• Power supply voltage: VM=15V max
• Output current: Iout=1.2A(average) / 3.2A (peak)
• Standby control to save power
• CW/CCW/short brake/stop motor control modes

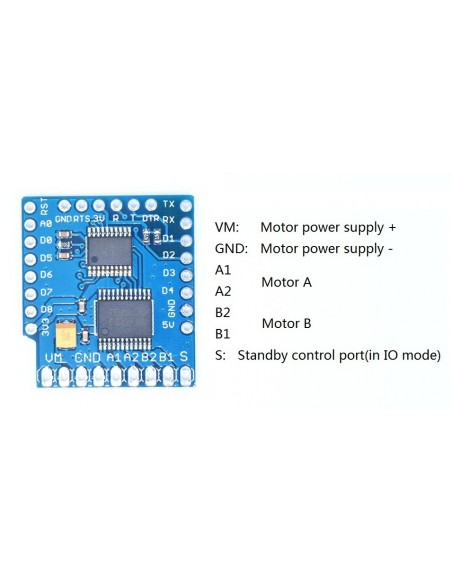

VM: Motor Power Supply +
GND: Motor Power Supply -

A1: Motor A
A2: Motor a

B2: Motor B
B1: Motor B

S: Stand by control port (In io mode)

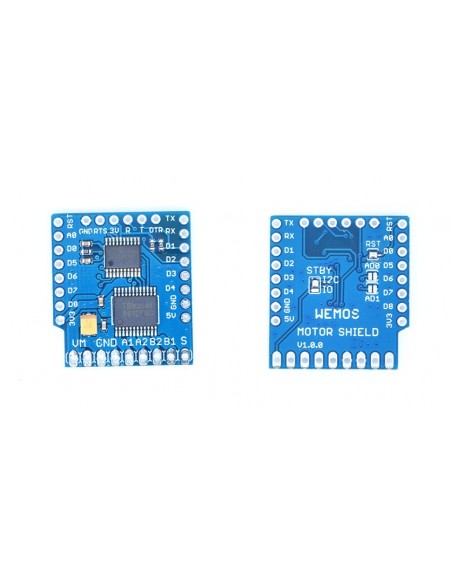

1. Stanby control mode

• - I2C mode: Control TB6612's STBY with I2C protocol
• - IO mode: Control TB6612's STBY with "S" pin

2. Shield reset mode

• - short: reset with d1 mini (reset at power on or press d1 mini's reset button)
• - open: reset by "DTR" pin.
