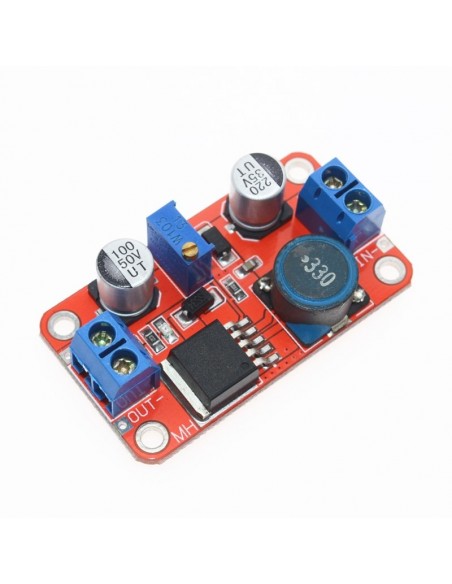

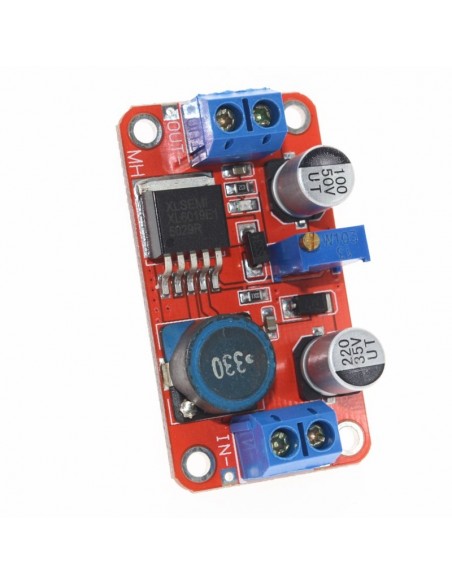

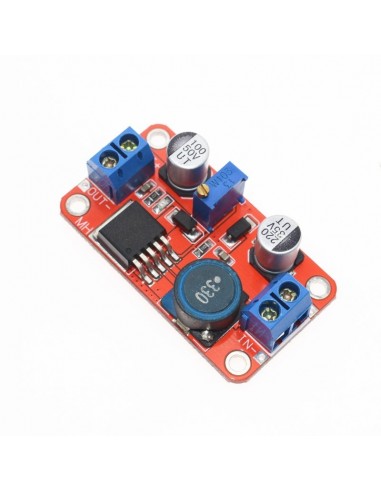

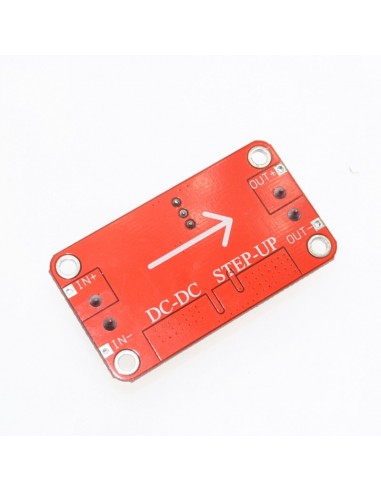

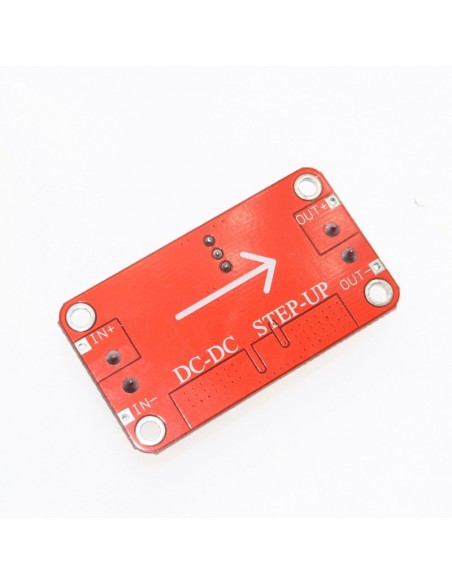

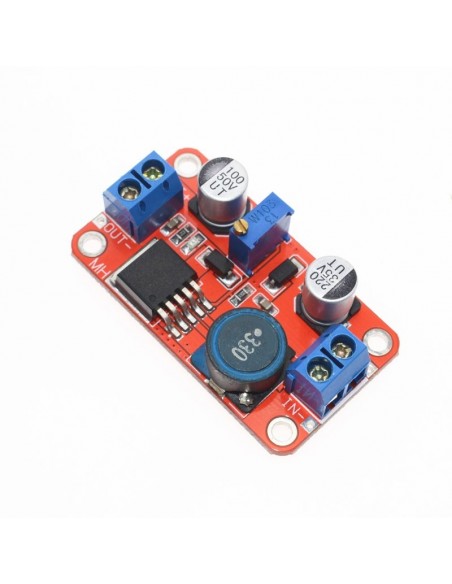

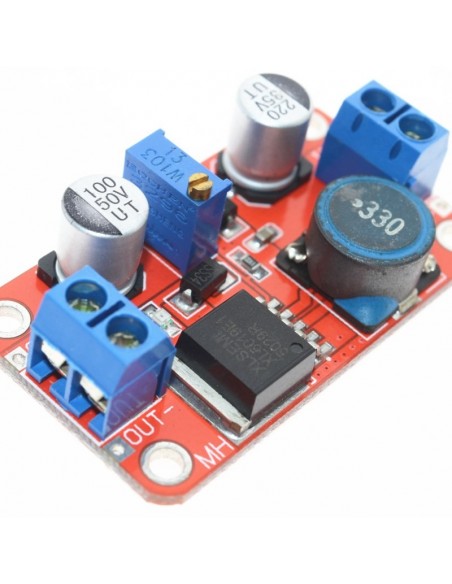

XL6019 DC-DC Step-Up Module
XL6019 DC-DC Step-Up Module
XL6019 DC-DC Step-Up Module
XL6019 DC-DC Step-Up Module
XL6019 DC-DC Step-Up Module
XL6019 DC-DC Step-Up Module
XL6019 DC-DC Step-Up Module
XL6019 DC-DC Step-Up Module
XL6019 DC-DC Step-Up Module
XL6019 DC-DC Step-Up Module

XL6019 DC-DC Step-Up Module

Booster module

00685
Out-of-Stock
€4.10



  • Power dissipation: 30W
  • Input voltage: 4-35V
  • Output voltage: 5-40V
  • Output current:4A (max)
  • Maximum short-time load current: 5,0 A
  • Efficiency:94%
  • Frequency: 220 KHz
  • Output ripple: <100mV
  • Operating temperature: -40°C - +125°C
  • Size: 50mm * 28mm * 13mm

Overheat protection, overcurrent protection circuit.
The power indicator light.
Potentiometer to set the output voltage.
