HX1838 Remote Control RC21 (3 in 1)

Name: HX1838 Remote Control RC21 (3 in 1)
SKU: 00334
Price: 4.5 EUR
Availability: OutOfStock

3 in 1 Remote Control + Receiver + N E C Coded Infrared Module with Female to Female Dupond Line Wire Cable

Reference 00334

Out-of-Stock

€4.50

(€4.50 kompl.)

Description:

Brand new and high quality.
Sensor uses HX1838, high sensitivity.
Operating voltage 5V.
Output form: Digital output.
VCC: 3.3V-5V external voltage (can be directly connected to the 5v microcontroller and 3.3v microcontroller).
GND: external GND.
IN: external microcontroller I/O port, I/O port has been designed 10K pull-up resistor.
Kit theory test distance of about 5-8 meters, but the practical application depends on the ambient factors you use, as well as the middle barrier (such as diaphragm, glass, obstructions or other material blocking), receiving head with HX1838 with power work instructions lights, receive 38K frequency any remote coding data.

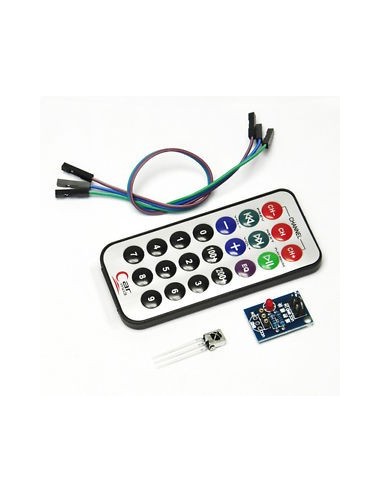

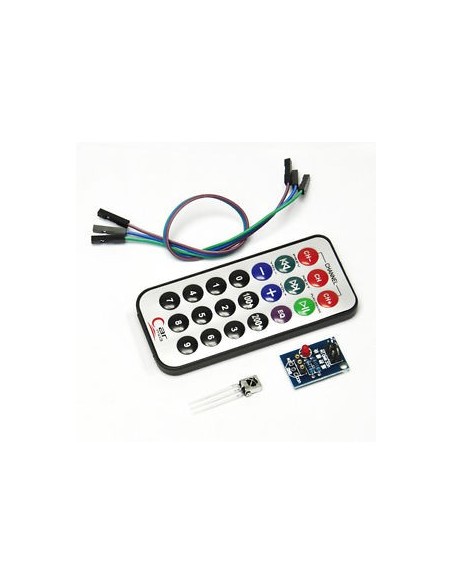

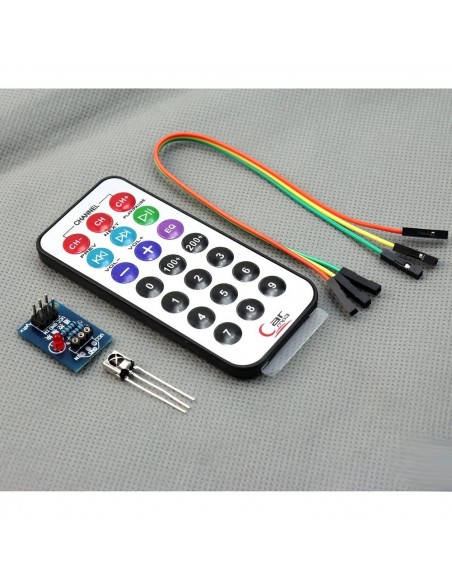

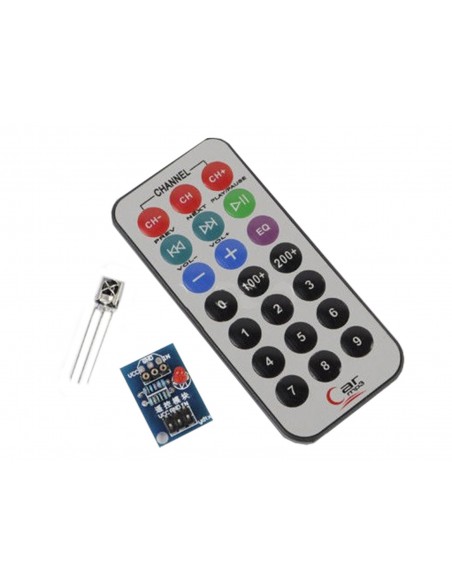

Package Included:
1 X IR Remote Control
1 X HX1838 remote module
1 X Receiving Head
1 X Dupon Cable

Test Code:

#include <IRremote.h>

int RECV_PIN = 11; //define input pin on Arduino

IRrecv irrecv(RECV_PIN);

decode_results results;

void setup()

{

Serial.begin(9600);

irrecv.enableIRIn(); // Start the receiver

}

void loop() {
