VS1053 MP3 Module With SD Card Slot
Audio codec

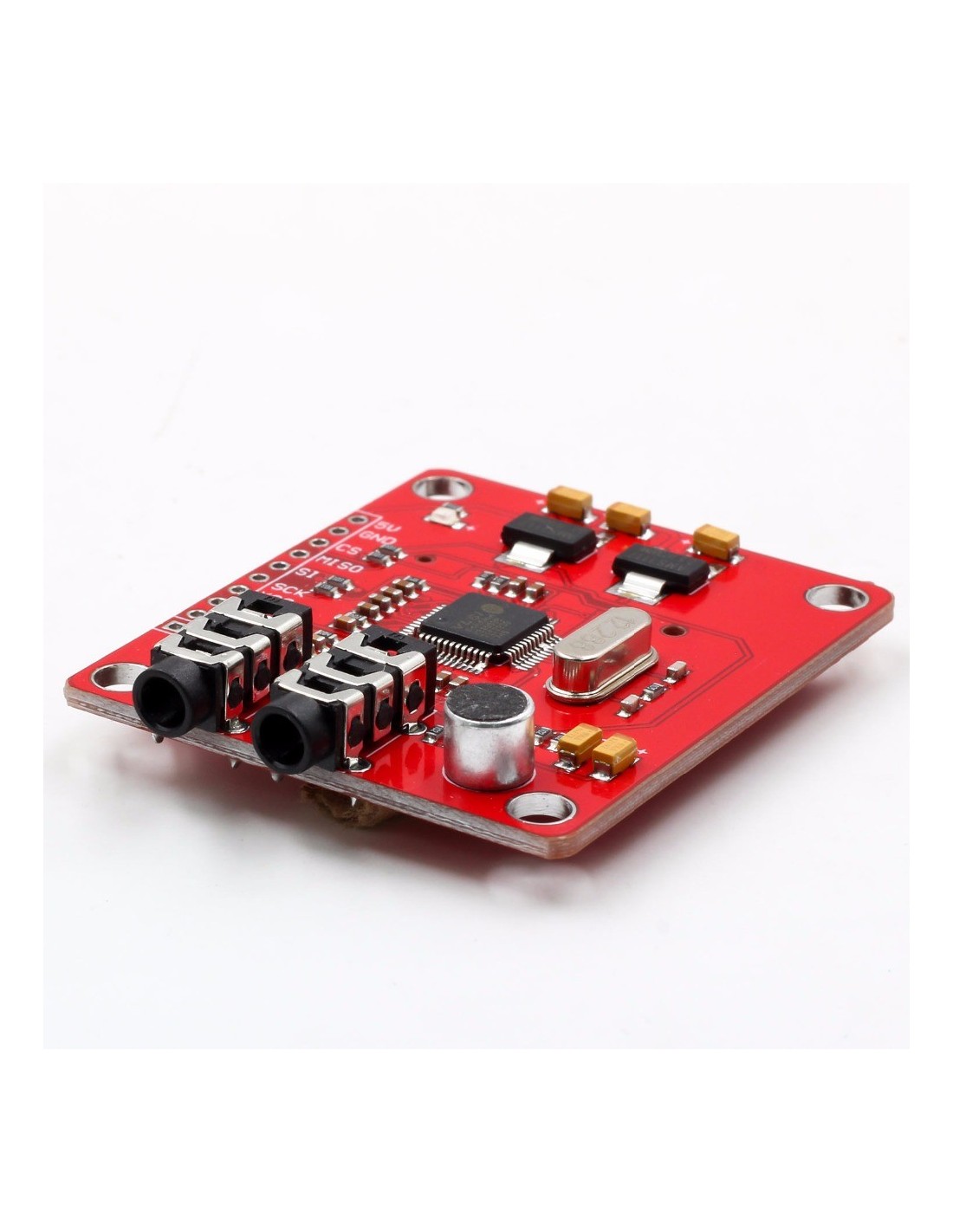

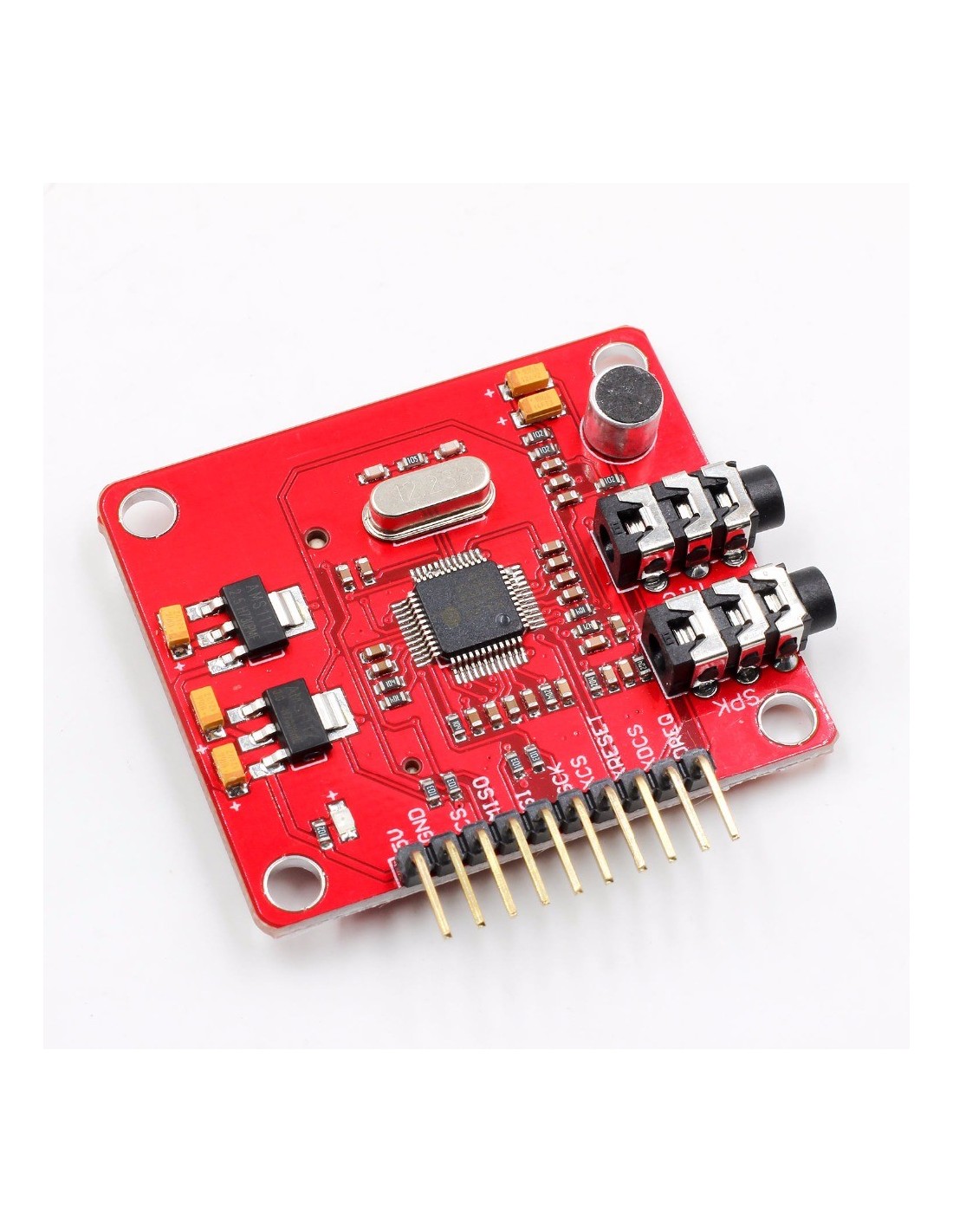

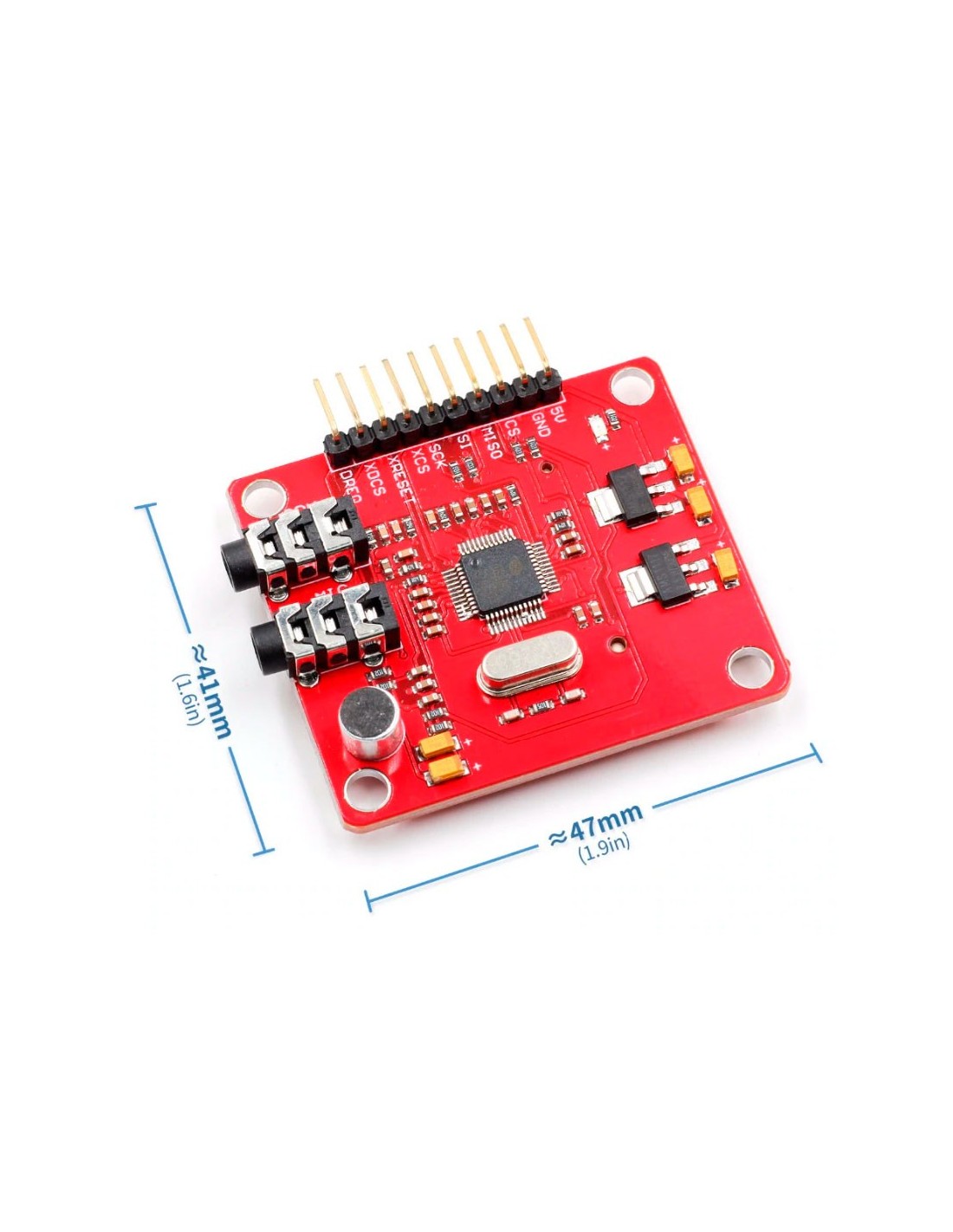

This tiny board is designed based on VS1053B . VS1053 is a versatile MP3 codec processor that is capable of decoding a variety of music formats,including Ogg Vorbis/MP3/AAC/WMA/MIDI audio. For the best headphone listening experience, the VS1053 includes EarSpeaker spatial processing which accurately simulates how a room with stereo loudspeakers would sound. In addition to being able to decode all major formats, VS1053 is capable of recording in Ogg Vobis file.

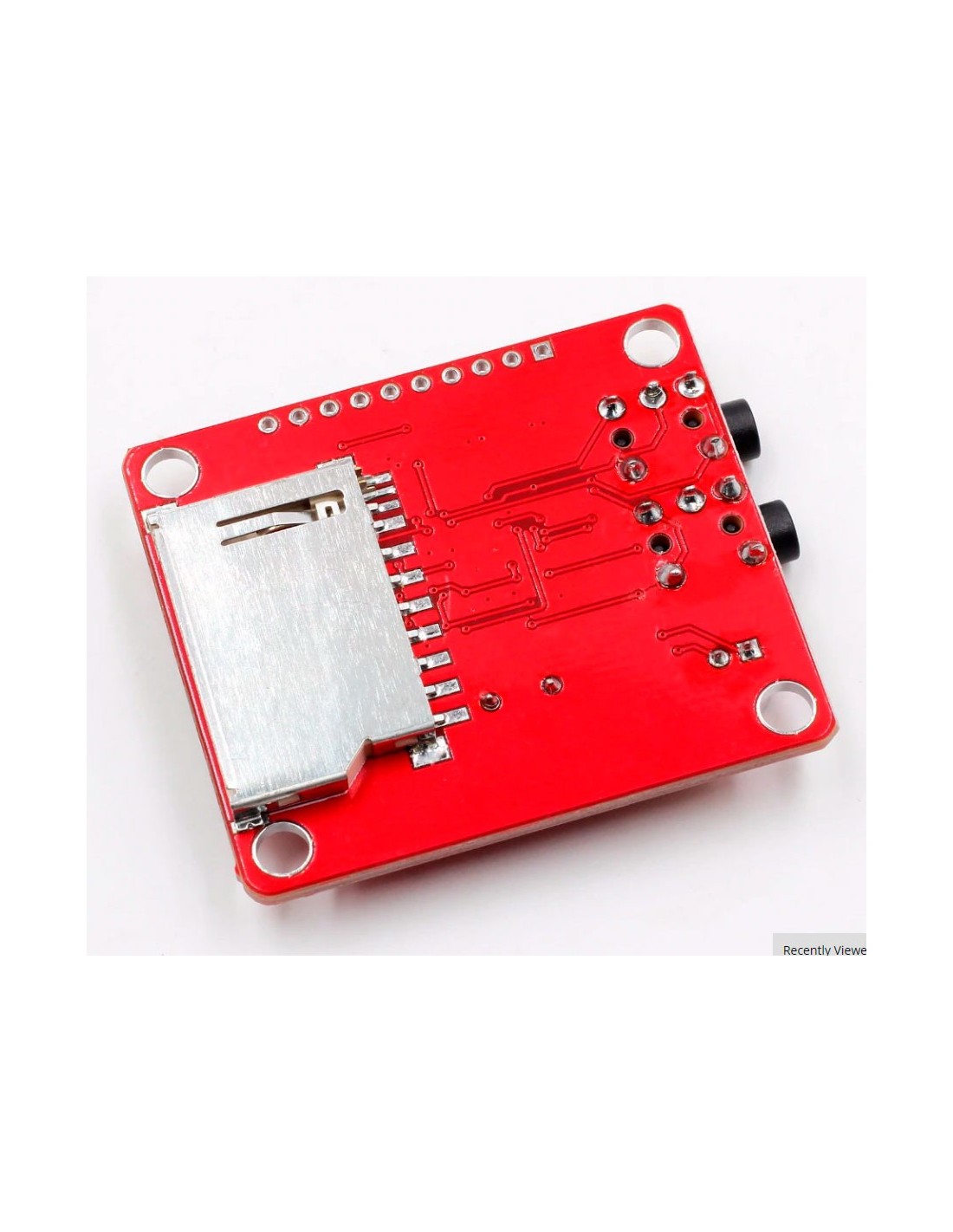

With the SD card slot on the other side of the board, you can play mp3 files from SD card using this breakout. It is easily to drop it in your project or make a mp3 player using your For Arduino or other microcontroller.
Features
- Can play a variety of music formats, support for OGG encoding real-time recording
- SPI interface, the control signal lines are led out
- A headphone and stereo output
- A microphone for recording
- A line_in input interface
- Power indicator
- 3.3V and 2.8V of LDO chip AMS-1117 on board, provides up to 800mA current
- A single power supply: +5 VDC
- 12.288 Mhz crystal
- SD card slot
Decodes formats
- Ogg Vorbis
- MP3 = MPEG 1 & 2 audio layer III (CBR+VBR+ABR)
- MP1 & MP2 = MPEG 1 & 2 audio layers I & II optional
- MPEG4 / 2 AAC-LC(+PNS), HE-AAC v2 (Level 3) (SBR + PS)
- WMA4.0/4.1/7/8/9 all profiles (5-384 kbps)
- FLAC lossless audio with software plugin (upto 24 bits, 48 kHz)
- WAV (PCM + IMA ADPCM)
- General MIDI 1 / SP-MIDI format 0
- Encodes formats from mic/line Ogg Vorbis with software plugin
- IMA ADPCM
- 16-bit PCM
