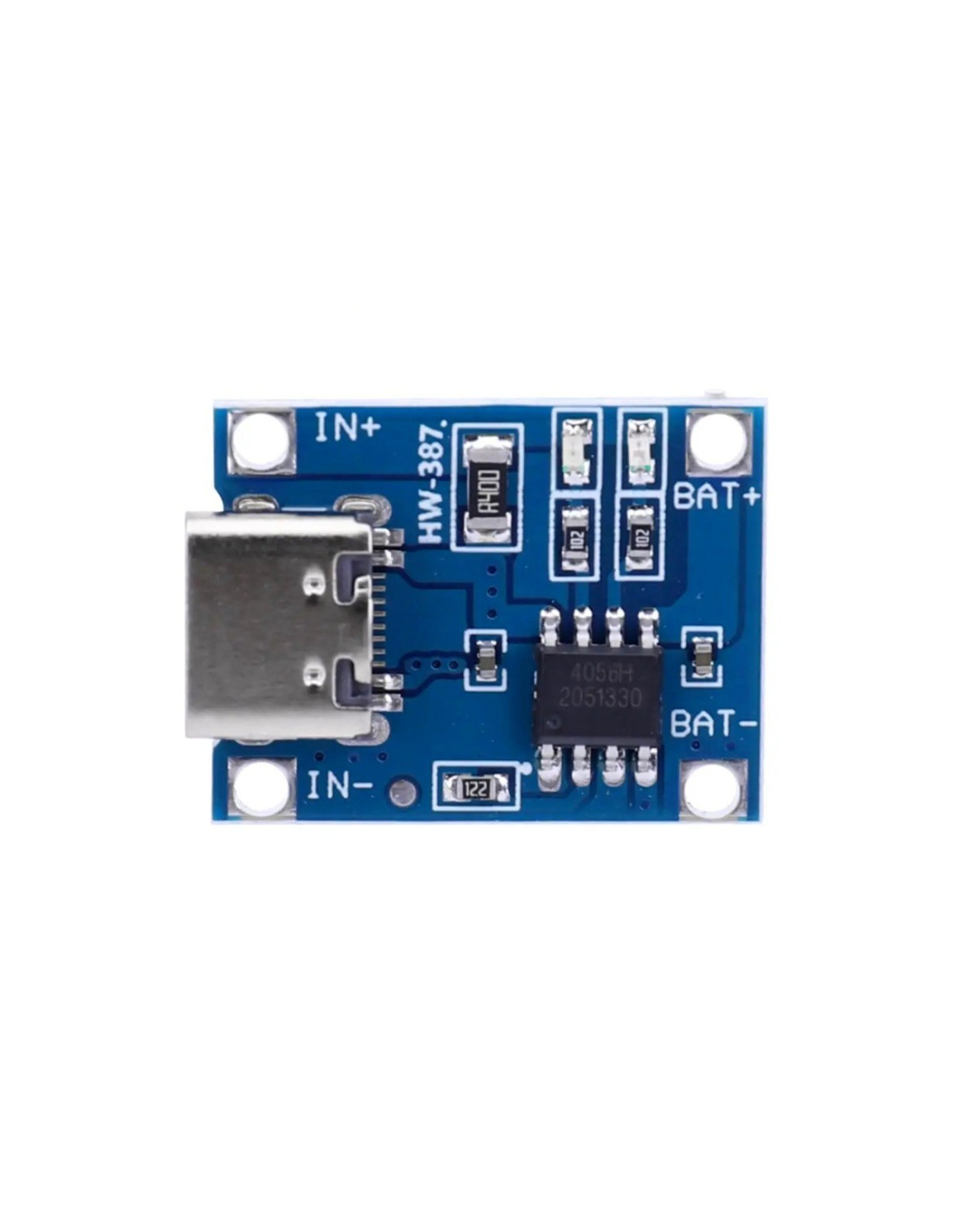

Lithium Battery Charging Board USB Type-C

00920
10 Items
€0.90



Specifications:

  • Charge module: Linear charging
  • Current: 1A adjustable
  • Charge precision: 1.5%
  • Input voltage: 4.5V-5.5V
  • Full charge voltage: 4.2V
  • Led indicator: red is charging blue is full charged
  • Input interface: USB Type-C
  • Work temperature: -10C to +85C
  • Inversed polarit: NO
  • Size: approx.22*17*5mm
  • Net weight: approx. 1,5g

Note:

  • Ampere meter can only be connected to 5v input end of the module.
  • It is better that the charging current is 37% of the battery capacity. If you charge to the battery of 1000mAH, current of 400 is enough
  • The connection wire should not be too thick.
  • Make sure the connect point is good.
  • If the input voltage is too high, like 5.2v, the current will be less than 1000mA, it is normal. It is protection function, auto-substract the charging current to avoid burn damage to chip
  • NO Reveral polarit.
  • There is no effect when Input reverse connect chip. But it will damage the chip when Output (battery side) reverse connection
  • Please allow 1-3mm differs due to manual measurement.
  • Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.
