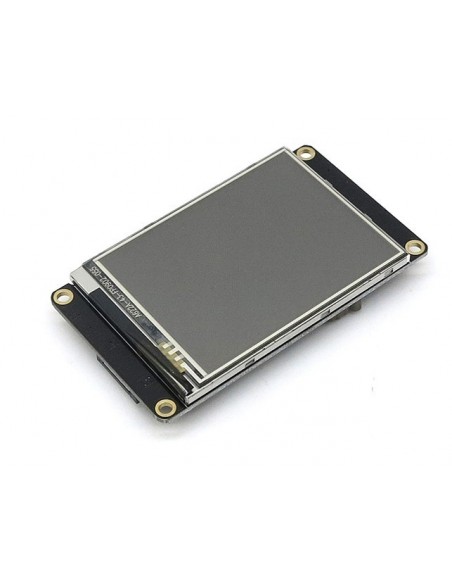

3.2" Nextion Enhanced HMI Display

The Nextion Enhanced versions are more powerful. Compare to the basic Nextion displays, the new ones have added some new functions: support built-in RTC, support save data to Flash, support GPIO, larger flash capacity and faster CPU. The enhanced Nextion series has 7 size covers from generic 2.4'' to 7.0''.

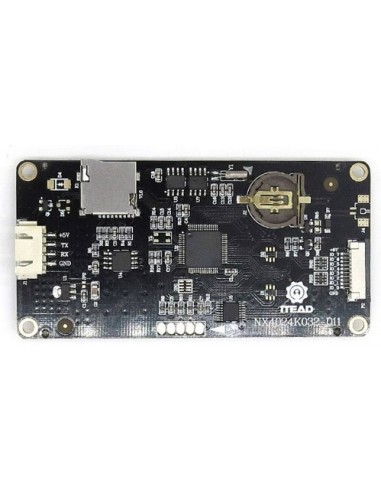

Nextion Enhanced NX4024K032 is a powerful 3.2'' HMI TFT display, with 16MB Flash data storage space, 1024 byte EEPROM, 3584byte RAM. With GPIO supported, now you can use Nextion to control external devices.

Nextion is a Seamless Human Machine Interface (HMI) solution that provides a control and visualisation interface between a human and a process, machine, application or appliance. It is the best solution to replace the traditional LCD and LED Nixie tube.

Nextion includes hardware part (a series of TFT boards) and software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets you avoid the hassle of wiring. We notice that most engineers spend much time in application development but get unsatisfactory results. In this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich your interface design. And the drag-and-drop function ensures that you spend less time in programming, which will reduce 99% of your development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake. It's easy to adapt Nextion family HMI to existing projects, you just need to provide it a UART.

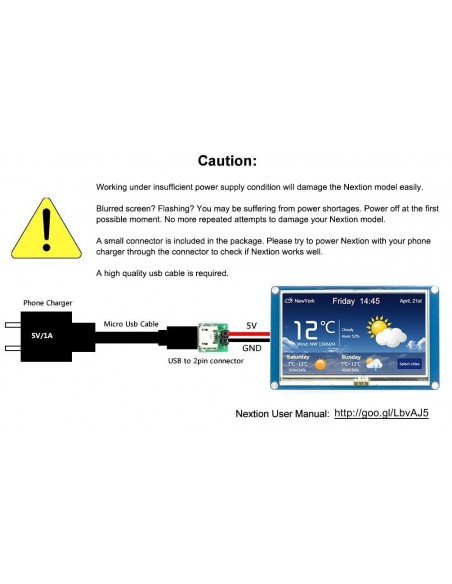

Note: there's a small power supply test board and a wire for you to test if the electricity supply is enough or not. Please see below image how to use it.

Features

• Supports built-in RTC
• Supports GPIO
• SD Card interface: support max max 32G Micro TF/SD card (FAT32 file format)
• Flash data storage space: 16MB
• EEPROM: 1024 bytes
• RAM: 3584 bytes
• Instruction buffer: 1024 bytes
• Colo: 65K (65536) colors
• Resolution: 400×240 pixel
• Adjustable Brightness: 0~180 nit- the interval of adjustment is 1%

Specification

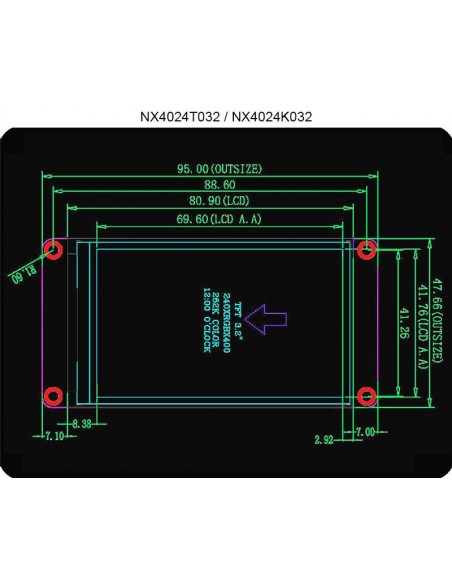

• Visual Area:69.60mm(L)×41.76mm(W)
• Layout size: 95(L)×47.6(W)×5.55(H)
• Touch type: Resistive
• Backlight: LED
• Backlight lifetime (Average): >30,000 Hours
• Net Weight: 42.5 g
• Recommended power supply: 5V 500mA DC
• Certificates: CE/EMC, RoHS (certificates)

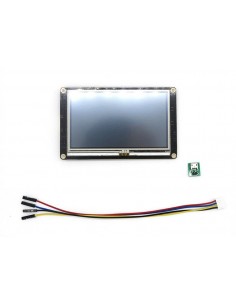

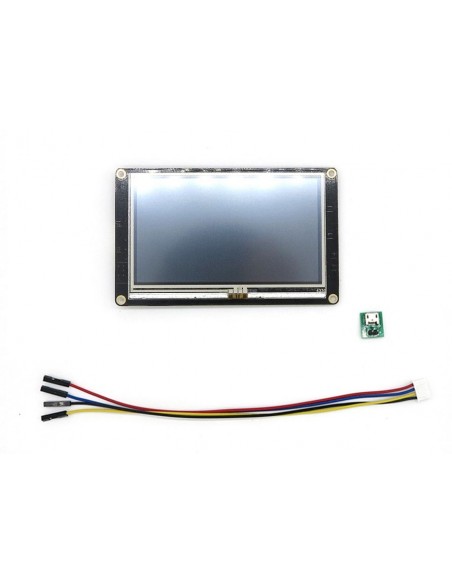

Package includes

1× 3.2" Nextion Enhanced HMI Display

1× power supply test board

1× 4-pin grove cable

Documents

Please visit our wiki page for more information about this product. Any suggestions for improvement, such as correcting errors, adding more demo codes or tutorials, will be highly appreciated.

Technical support

For technical support, please open a ticket on Nextion Forum.
