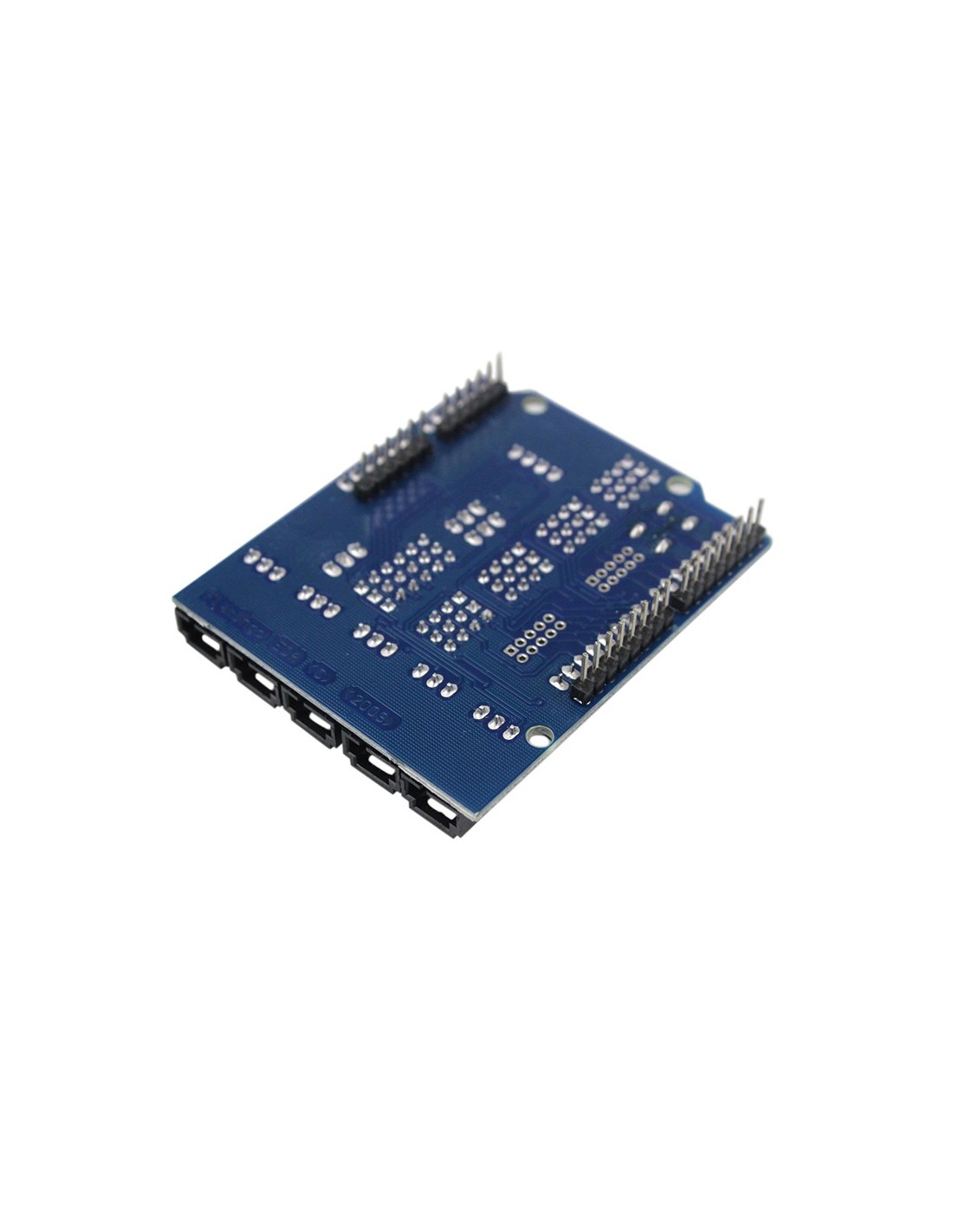

UNO R3 Sensor Shield V4.0

   Each functional module has buckled port with VCC, GND and Output, which has corresponding port on the Sensor Shield, connected with a plain 2.54mm dual-female cable you may start playing already.

   Buckled brick cables are like cement for bricks, make the connections easier, secure and more professional looking. Just plug & play.

•    Operating Voltage: 5VDC.
•    Input Voltage (recommended): 7-12VDC.
•    Input Voltage (limits): 6-20VDC.
•    Buckled Analog Port : Handy, solid connection to 6 Analog inputs with VCC/GND.
•    Digital IO port : 13 ports prepared to digital modules or servos.
•    Analog IO Port:2.54 grid male pin header connections.
•    Buckled Communication Port : Selectable between I2C and UARt.
•    Size:7cm x 5.8cm
