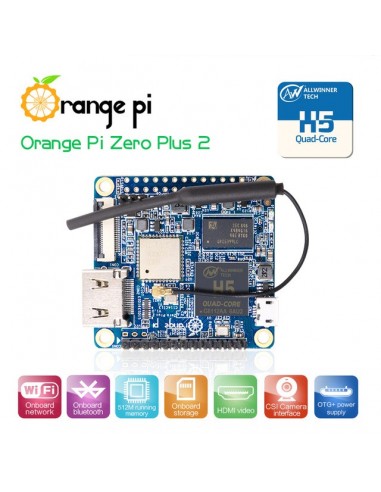

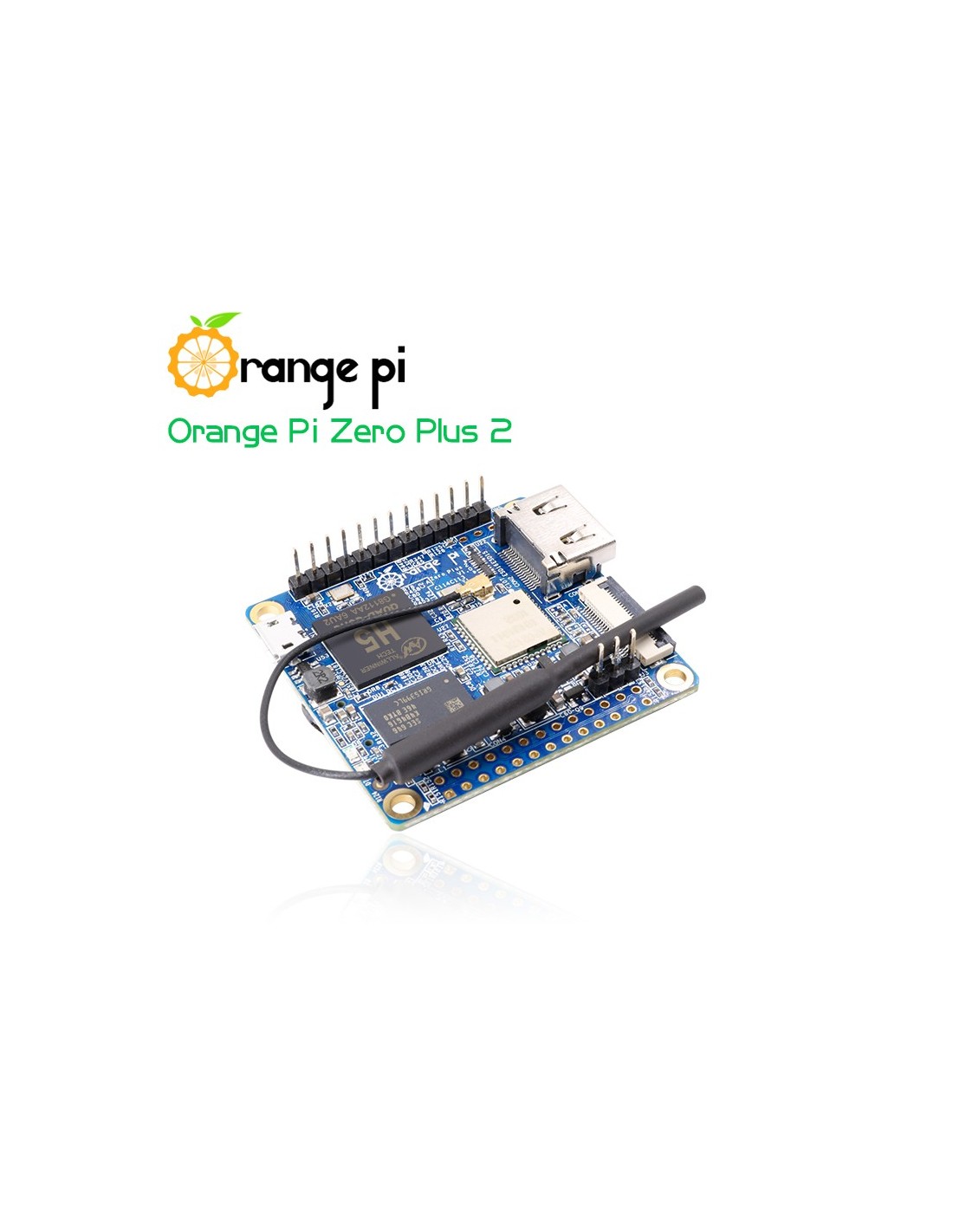

Orange Pi Zero Plus 2 H5

Hardware specification

CPU

H5: Quad-core Cortex-A53

H3:Quad-core Cortex-A7

GPU

H5: Mali450 GPU
H3: Mali400MP2 GPU

Memory (SDRAM)

512MB DDR3 (shared with GPU)

Onboard Storage

TF card (Max. 32GB) /eMMC flash(8GB)

Onboard WIFI

AP6212, IEEE 802.11 b/g/n,BT4.2

Video Input

A CSI input connector Camera

Supports 8-bit YUV422 CMOS sensor interface

Supports CCIR656 protocol for NTSC and PAL

Supports SM pixel camera sensor

Supports video capture solution up to 1080p@30fps

Video Outputs

Supports HDMI output with HDCP

Supports HDMI CEC

Supports HDMI 30 function

Power Source

USB OTG can supply power

GPIO(1x3) pin

UART, ground.

Buttons

Power Button

Low-level peripherals

26 Pins Header,compatible with Raspberry Pi B+

13 Pins Header,with 2x USB, IR pin, AUDIO(MIC, AV)

LED

Power led & Status led

Supported OS

Android, Ubuntu, Debian, Raspbian Image

Interface definition

Product size

46 mm × 48mm

Weight

36g
