Ультразвуковой датчик расстояния
1. Product description:

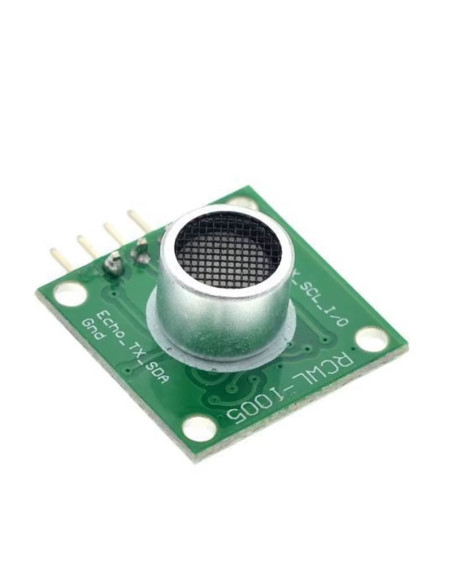

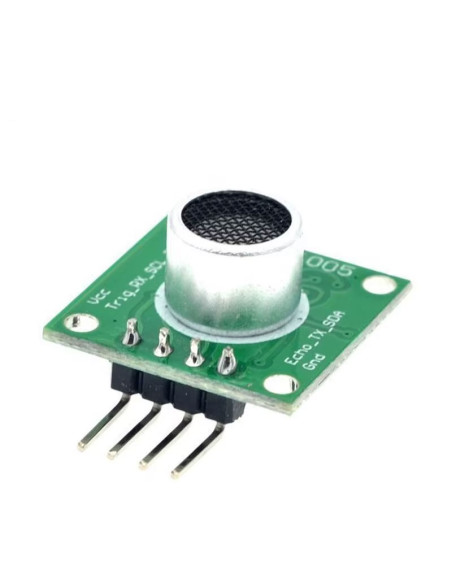

RCWL-1005 is a transceiver integrated ultrasonic ranging module designed by our company's self-developed chip RCWL-9624.

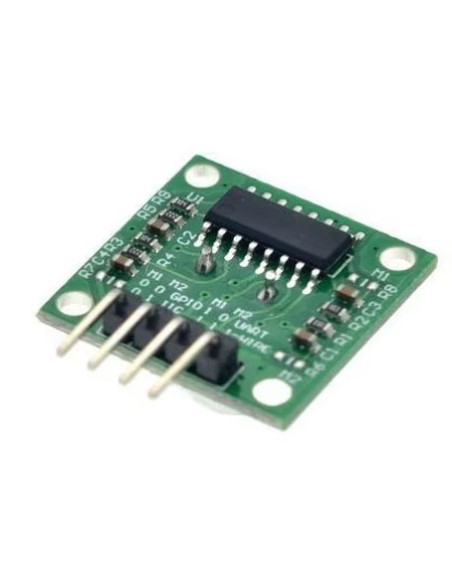

By default, the software is fully compatible with our old version HC-SR04; it can be set to UART, IIC or single-bus mode through resistors. 25CM ultra-small blind area, 4.5M typical farthest ranging, 2mA ultra-low working current. The self-developed chip RCWL-9624 is used to make its periphery simpler, wider operating voltage (2.8-5.5V), and more interface functions.
2. Main features:
•Adopt professional chip RCWL-9624
• Working voltage: 2. 8-5V
• Working current: 2mA
• Support GPIO, UART, IIC and -WIRE multiple outputs
mode, the default output mode is compatible with HC-SR04
• 50mS period
Typical application:
• Toys, robot obstacle avoidance
• Liquid level, water level measurement
• Other ranging applications
3. Performance parameters:
|
parameter name |
Remark |
minimum |
Typical value |
maximum value |
unit |
|
Operating Voltage |
2.8 |
2.5 |
V |
||
|
Working current |
1.8 |
2 |
3 |
mA |
|
|
Maximum detection distance |
flat wall |
450 |
550 |
CM |
|
|
working frequency |
40 |
KHz |
|||
|
blind spot |
Random value in the blind zone |
25 |
26 |
CM |
|
|
Detection accuracy |
same temperature |
±2 |
% |
||
|
Resolution |
theory |
1 |
mm |
||
|
Detection angle |
Maximum direction angle |
±20 |
±30 |
°C |
|
|
Measurement cycle time |
50 |
mS |
|||
|
output interface mode |
GPIO/UART/1IC/1-WIRE |
||||
|
Operating temperature |
Plastic case probe (to be customized) |
-10 |
60 |
°C |
|
|
Operating temperature |
Aluminum shell probe |
-10 |
70 |
°C
|
|
