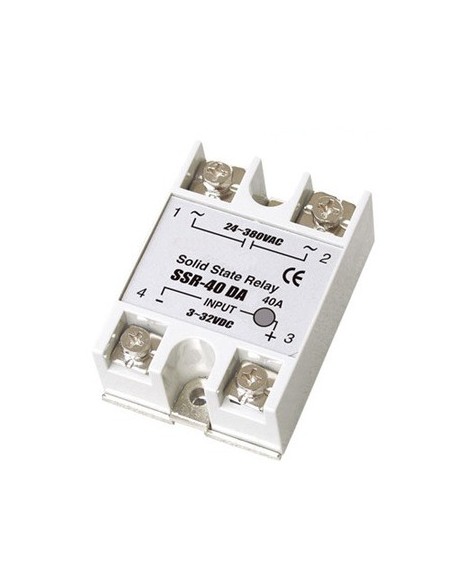

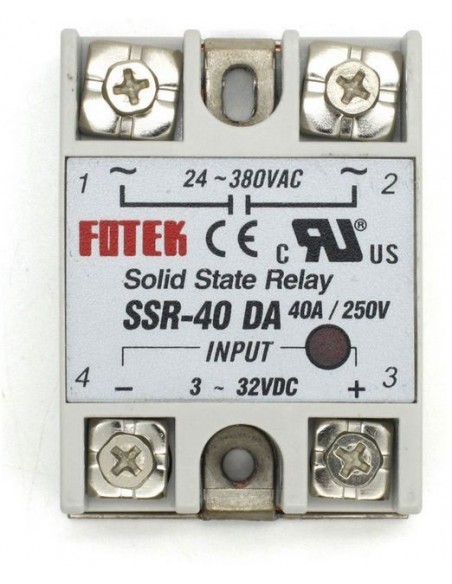

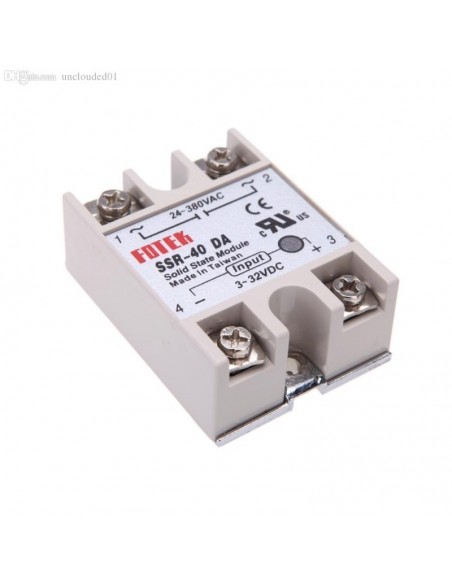

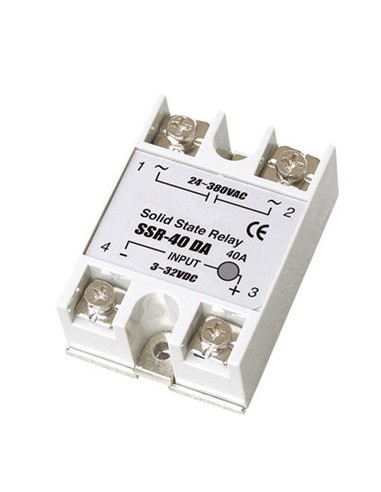

1ch Solid State Relay SSR 40A with Protective Flag
Реле (1 канал, DC-AC, 40A, 24-380VAC - 3-32VDC)
Description
- Long service life and high reliability
- The Single Phrase Solid State Relay is designed in accordance with IEC Standard
- Ideal for controlling high power AC device
- A good companion for Digital Temperature controller
- Control Method: DC to AC
- Model: SSR 40DA
- Input Voltage: 3V-32V DC
- Load Voltage : 24V-380V AC
- Load Current: 40A
- Control Voltage:80-250VAC
- Control Current: AC12mA
- Dielectric Strength: Over 2.5KVAC / 1min
- Insulation Strength : Over 500Mω/ 500VDC
- Operating Temperature:-35°C+75°C
- Mounting Method: Bolts fixed
- Need some professional knowledge to use it
- Size:6cm(L)x4.5cm(W)x2.3cm(H) (approx)
- Color : Grey
